Nexo DTDAMP4x0.7

Used Nexo DTDAMP4x0.7

Regular price $1,649.00
Unit price  per
Shipping calculated at checkout.

This product has an estimated 3-5 day shipment processing time.

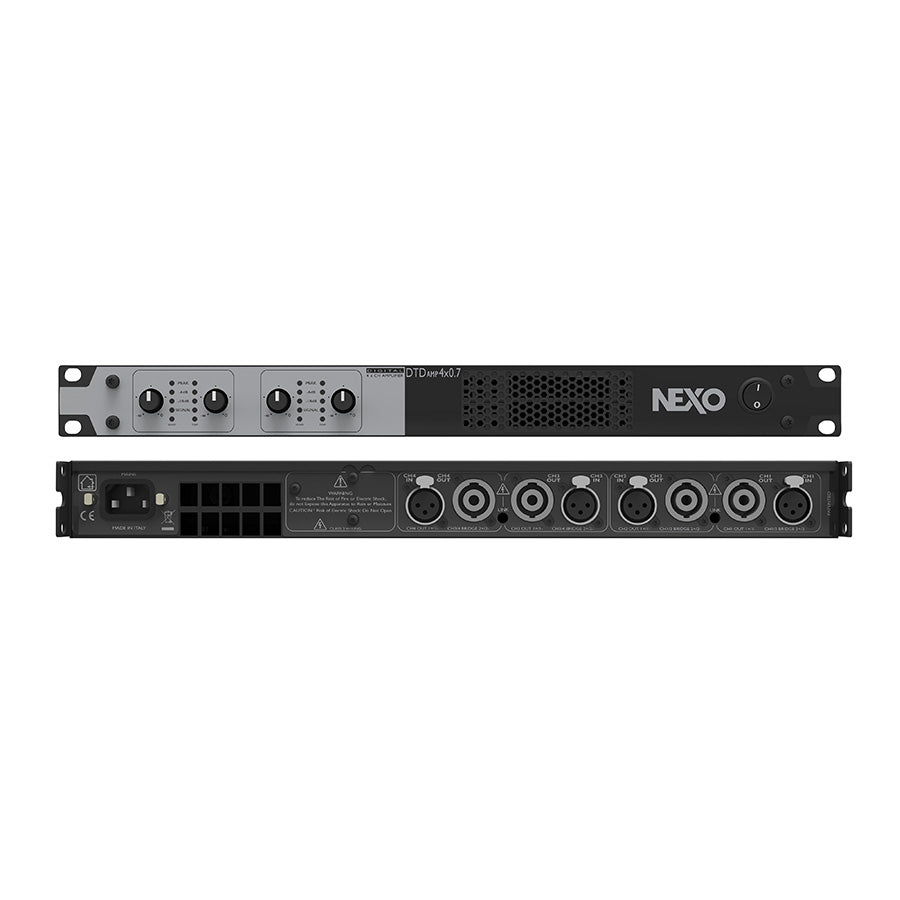

The DTDAMP range is composed of two models of four channel amplifiers housed in a 1U rack and weighting only 7.5 Kg. Complemented by the DTD Controller which offers a very efficient solution for processing most Nexo Speakers, from the ID series to our world famous PS15.

Features:

  • Two models of high-power, lightweight four channel amplifiers
  • High-efficiency Switch Mode power supply and Amplifier channel design
  • Channels can be independently bridged two by two
  • Four Inputs on XLR connectors and four Outputs on SP-4 connectors
  • Extensive protection (Mains over/ under-voltage, temperature, DC outputs, current and voltage peak limiters, variable speed cooling system

Specifications:

Number of channels 4 x amplifiers channel, 2 by 2 bridgeable
Max. output voltage (no Load) 4 x 85 Volts
Max. output power (4 x 8 Ohms) 4 x 360 Watts
Max. output power (4 x 4 Ohms) 4 x 700 Watts
Max. output power (2 bridge x 8 Ohms) 2 x 1400 watts
Frequency response +/- 0.5 dB from 20 Hz to 20 kHz
Input impedance 10 kOhms
Input sensitivity +5 dBU
Nominal Gain 32 dB
Dynamic Range (A-weighted) > 110 dB
THD+N Typical 0.01%
