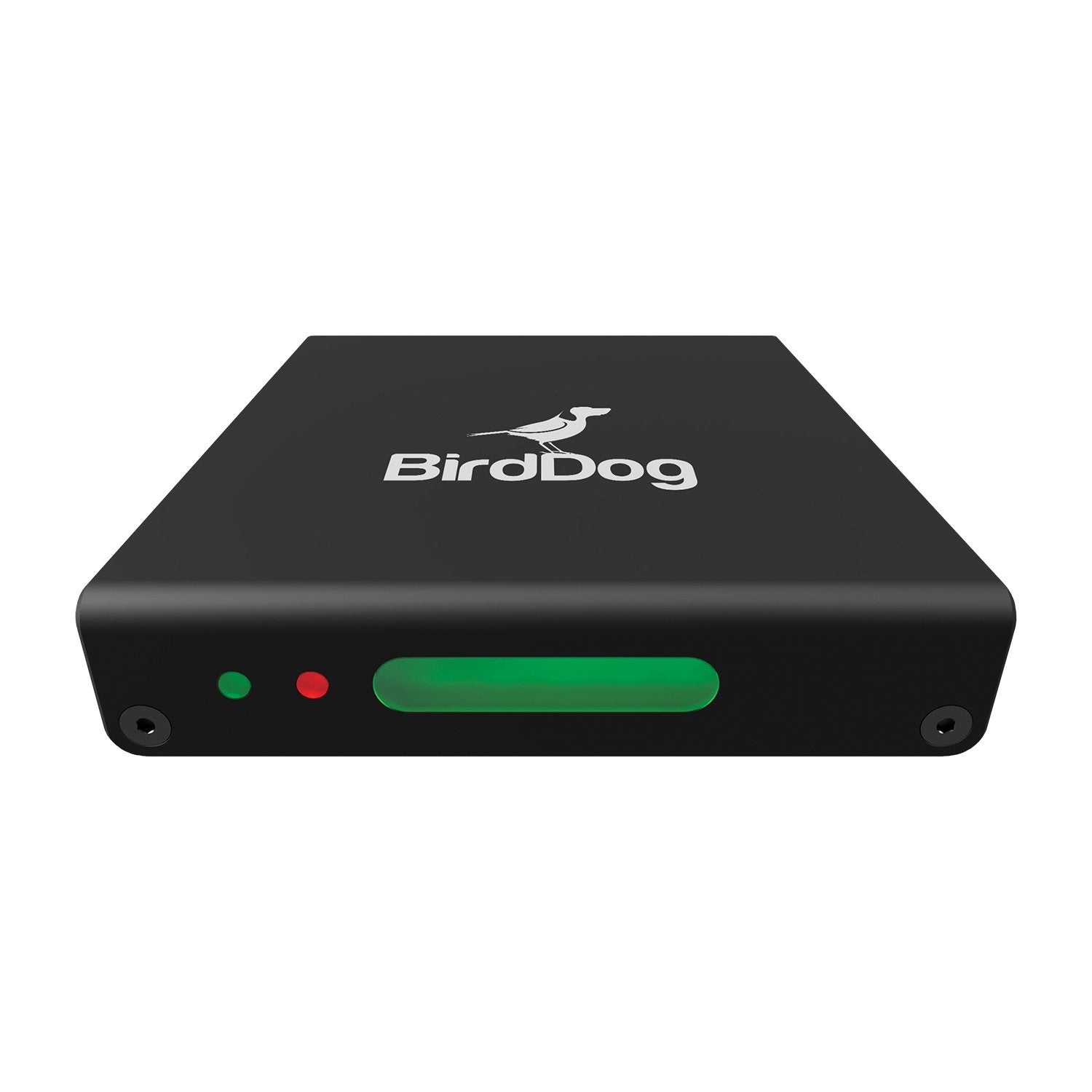

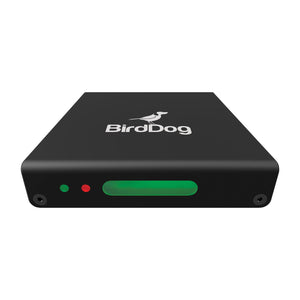

The BirdDog Mini HDMI to NDI Encoder is a tiny NDI interface for HDMI video sources. Connect your camera or other video source, and have it instantly be available on your NDI-enabled network. Despite its size, the BirdDog Mini supports 1080p resolutions up to 59.94 fps. PoE is accepted, so the Mini can be powered via network connection; no power supply needed. Tally information is displayed and passed through to compatible equipment. The small size of the Mini will make it at home in studios and video production facilities utilizing NDI technology.
Tally Support

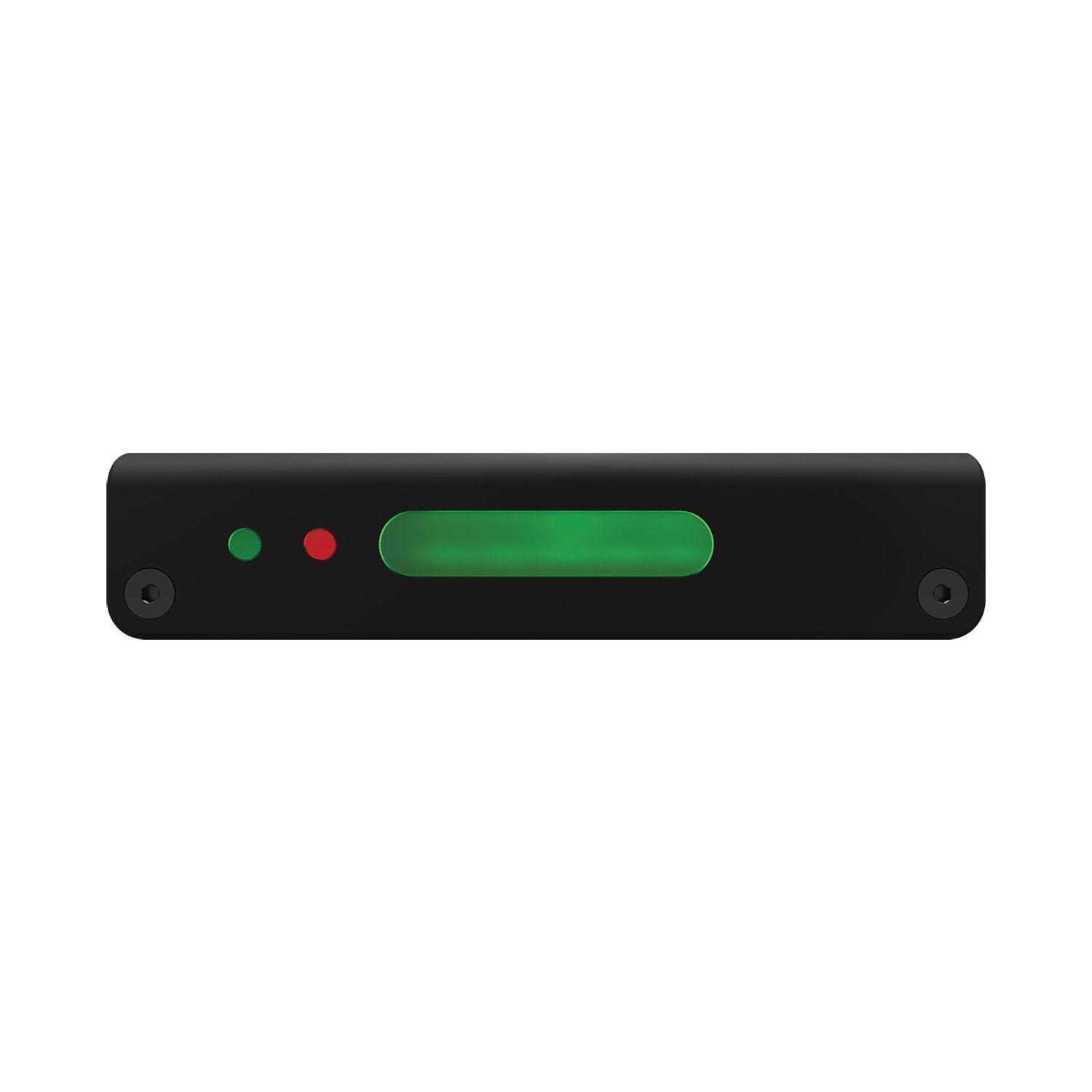

A built-in bi-color tally display can show video source on-air info. Tally information is also passed through to supported monitoring equipment.
Flexible Power Options
Power the Mini via DC input from your camera battery's D-tap, or use a separately available power adapter. Power can also be supplied over Ethernet using a PoE-enabled switcher or injector.
Comms
The Mini natively supports BirdDog Comms technology.
Technical Specifications
Video Formats
• (HD) 1080p 23.98, 25, 29.97, 50, 59.94
• (HD) 1080i 25, 29.97
• (HD) 720p 50, 59.94
• (SD) 525i, 625i

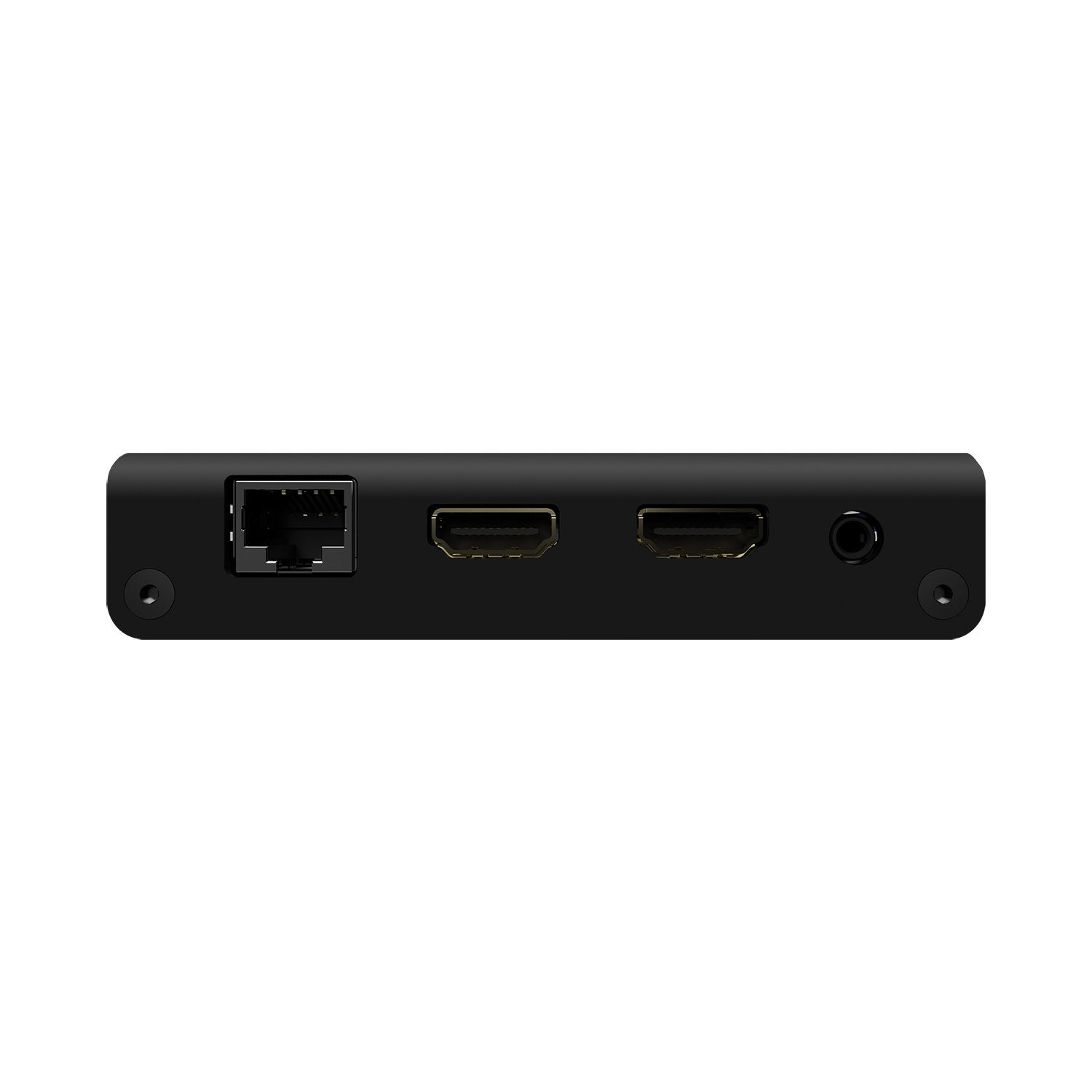

Video Input
• 1 x HDMI Standard Type A connector
• HDMI v1.4a, RGB or YCbCr
Video Output
• 1 x HDMI Standard Type A connector
• HDMI v1.4a, RGB or YCbCr
Audio Digital
• 2-Channel, 24-bit HDMI embedded audio,
48 kHz sample rate, synchronous
Audio Analog
• 2-Channel, 24-bit HDMI embedded audio,
48 kHz sample rate, synchronous
Video Codec Support
• Realtime, ultra-low latency, full-bitrate NDI
(i-frame)
Display
• Bicolor Tally (Red/Green)
• Multicolour status information
• Full status information on HDMI output (Selectable)
Network Interface
• 10/100/1000 Ethernet (RJ-45) with PoE
(Power over Ethernet)
• Embedded web configuration panel for
control and firmware updates
User Interface Controls
• Network settings
• Video settings
• Tally settings
• Audio and Comms settings
Size (w x d x h)
• 98x110x22mm
Weight
• 200g
Power
• 100-240V, 50/60 Hz Universal Input, +5-18V DC7W Max
• Power over Ethernet (PoE) 802.3af/at
