*** Note: This product does not include the power supply
This model is perfect for connecting HDMI cameras and computers to professional SDI equipment! You get two 3G-SDI outputs which can be set to level A or level B formats. Unlike cheap converters, it even supports feature film video formats including 1080p24, 1080p47.95 and 1080p48.
2 x SD, HD or 3G‑SDI.
Automatically matches the HDMI input.
HDMI Type A in.
Auto detection of SD or HD.
USB Type‑C.
Yes
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
SDI video connections are switchable between standard definition and high definition, and user selectable level A and B for 3G‑SDI via setup utility.
4:2:2
YUV
Automatically detects SD, HD, and 3G-SDI
525i29.97 NTSC, 625i25 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
4:2:2
YUV
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Mac OSX™ and Windows™ software via micro USB.
Via micro USB.
macOS 10.14 Mojave,
macOS 10.15 Catalina of later,
Windows 10.
Via software utility.
2.0 Watts
4.4 to 5.25V DC
0° to 40° C (32° to 104° F)
-20° to 60° C (-4° to 140° F)
0% to 90% non-condensing

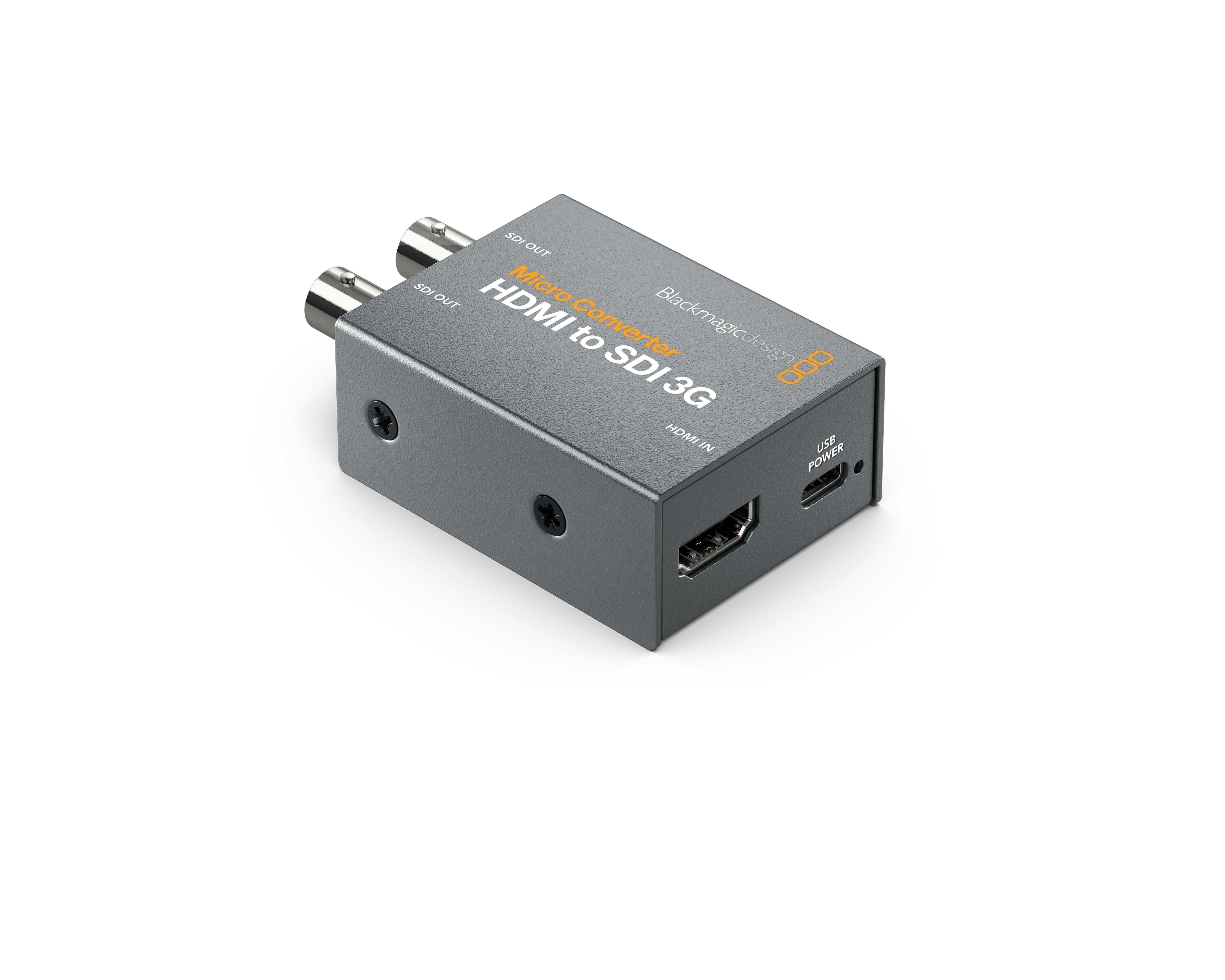

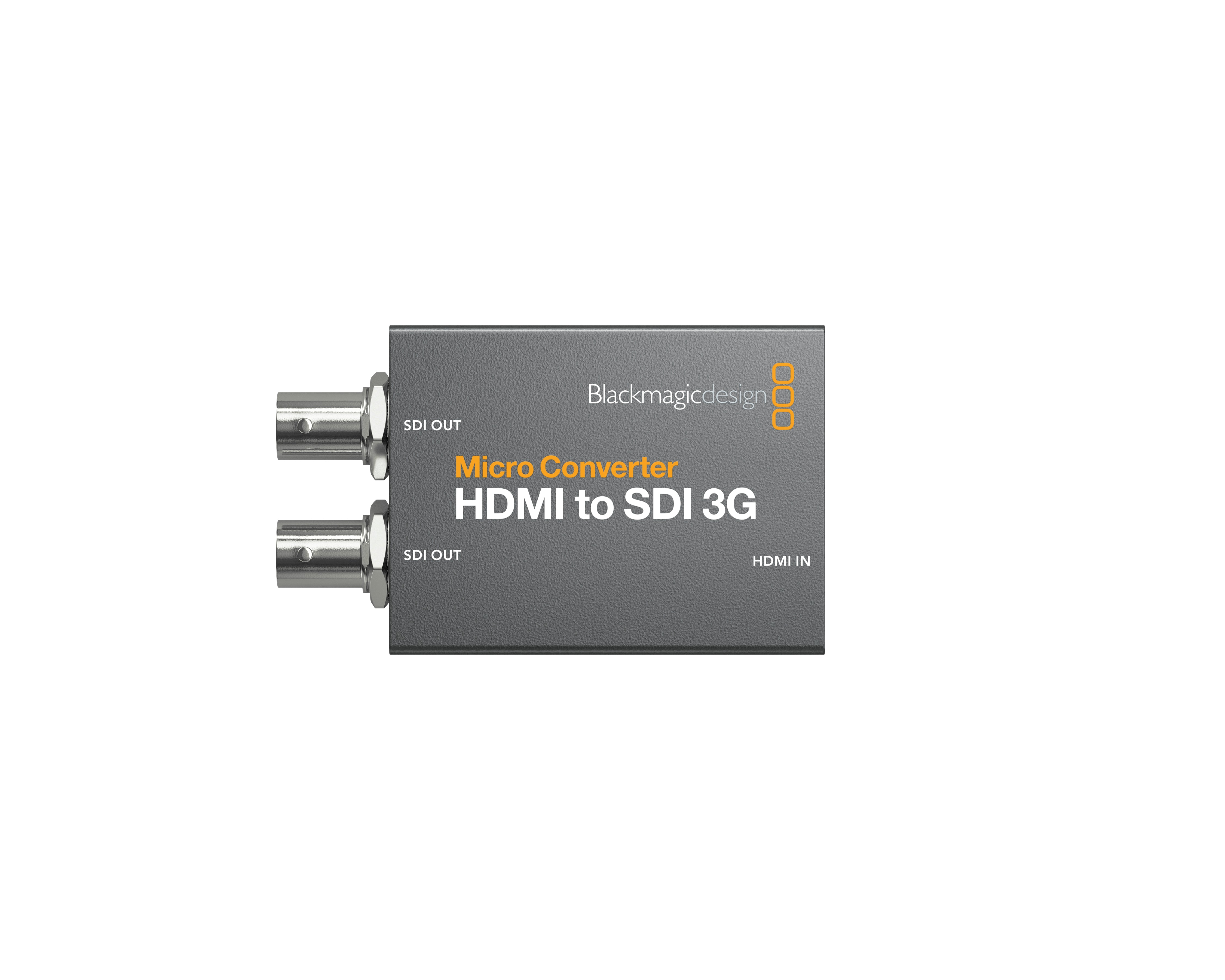

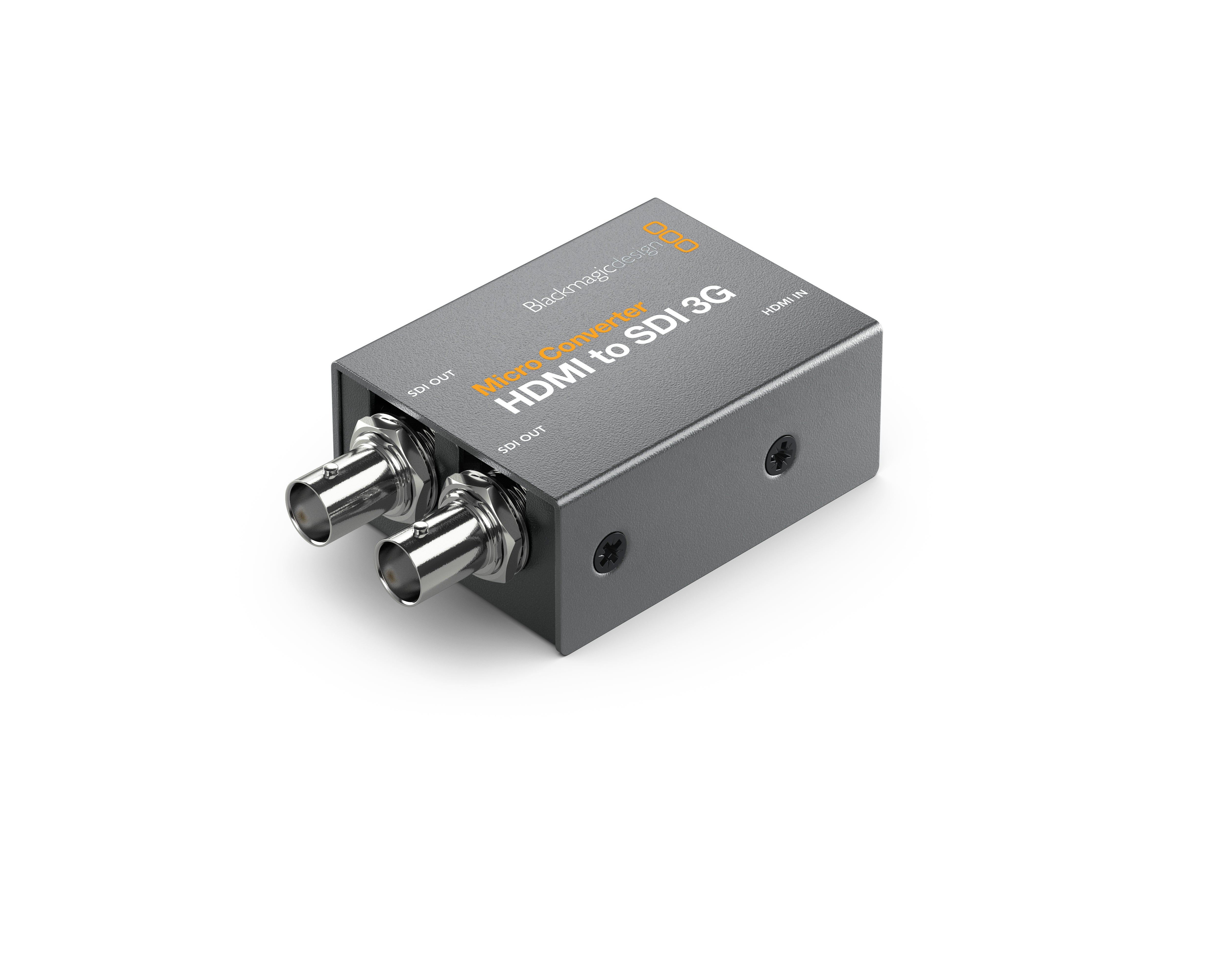

Micro Converter HDMI to SDI
3 Year Limited Manufacturer's Warranty.
This model is perfect for connecting HDMI cameras and computers to professional SDI equipment! You get two 3G-SDI outputs which can be set to level A or level B formats. Unlike cheap converters, it even supports feature film video formats including 1080p24, 1080p47.95 and 1080p48.
