Mini Converter HDMI to SDI 6G
Mini Converter HDMI to SDI 6G
Mini Converter HDMI to SDI 6G

Mini Converter HDMI to SDI 6G

Regular price $145.00
Unit price  per
Shipping calculated at checkout.

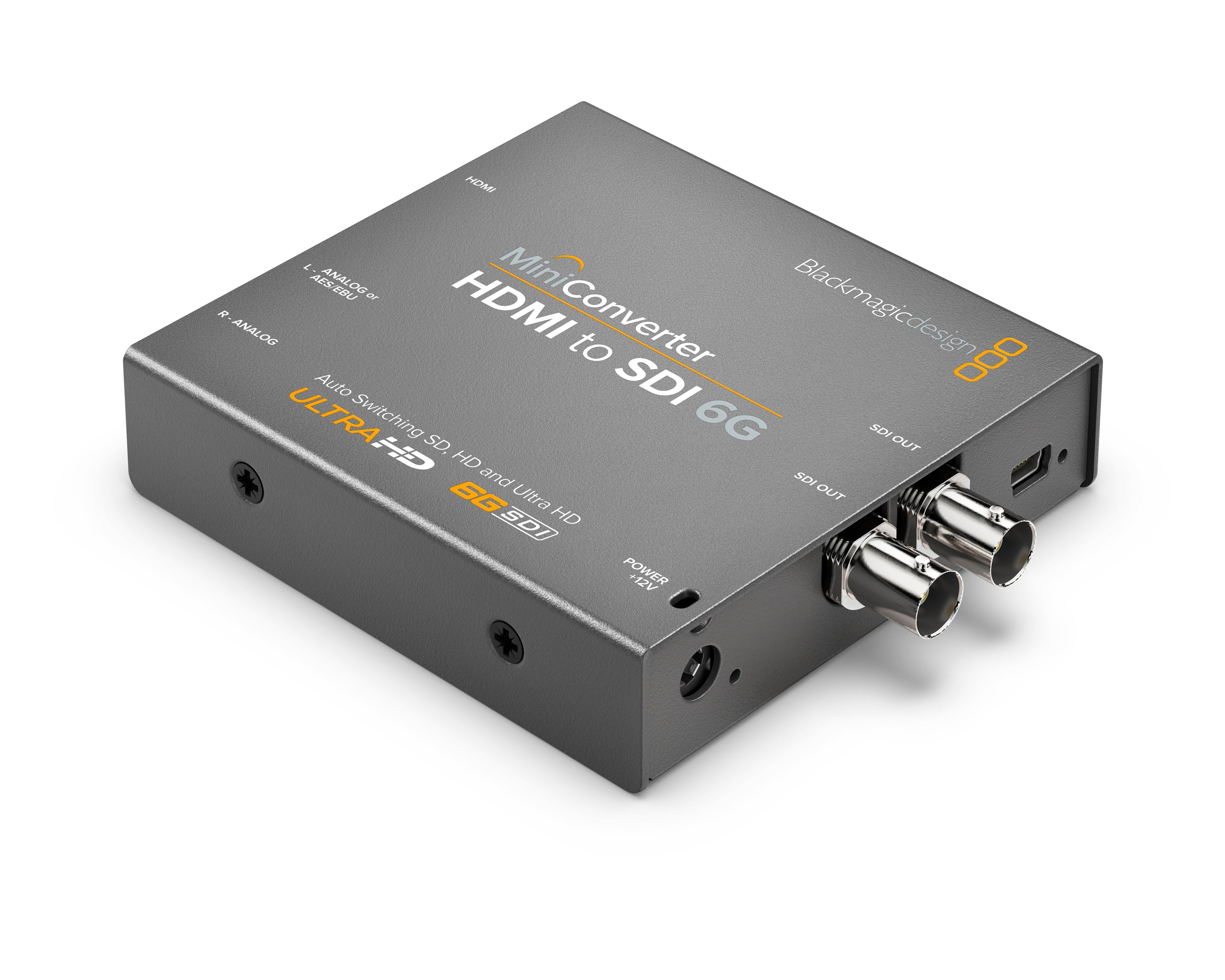

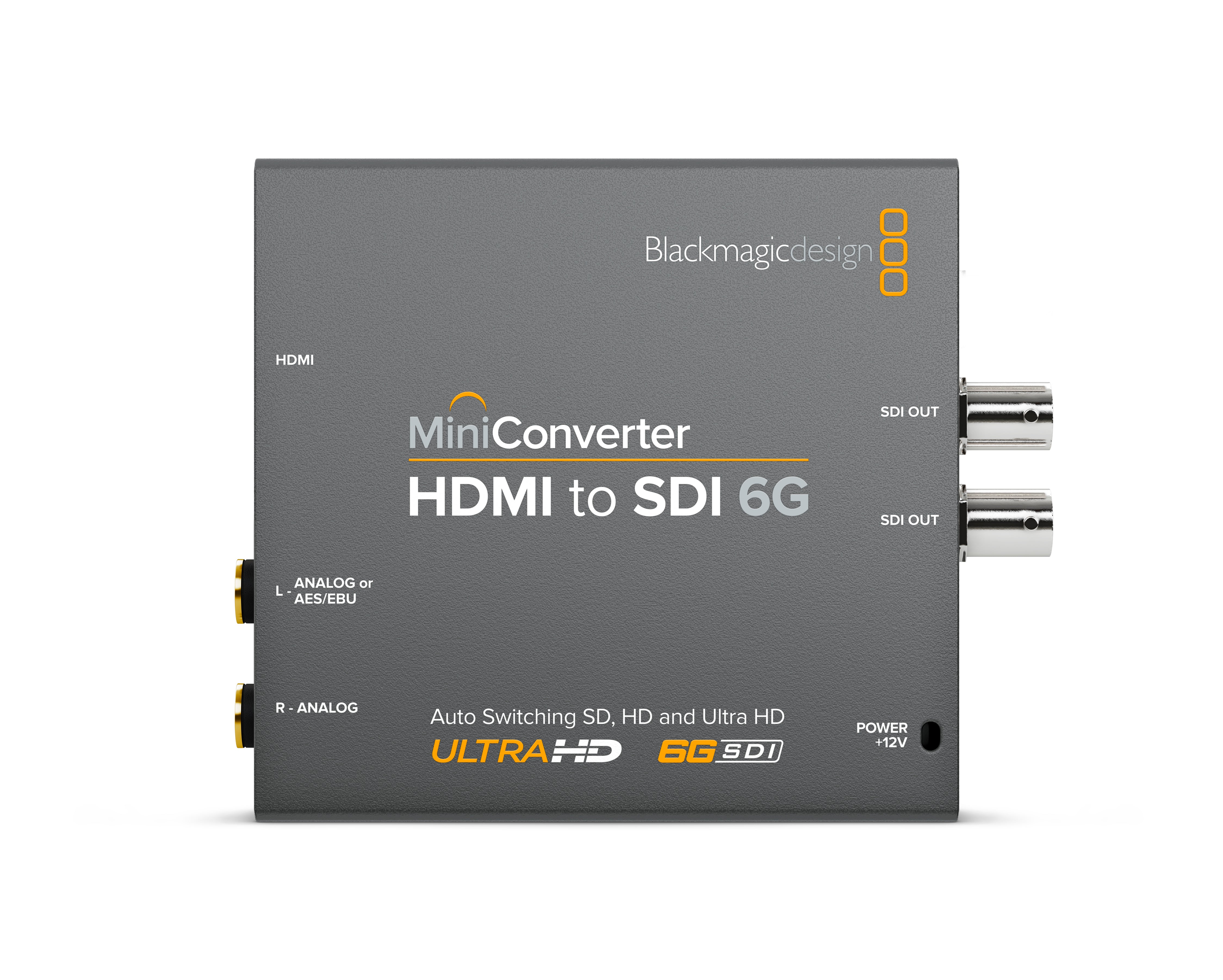

Mini Converter HDMI to SDI 6G includes everything you need to convert from HDMI devices to SDI video in SD, HD and Ultra HD video formats. With independent audio connections you can also embed SDI audio from HDMI, AES/EBU or balanced analog audio inputs. Mini Converter HDMI to SDI is the perfect solution to convert HDMI consumer cameras or computers to broadcast quality SDI!

2 x SDI Video Outputs. Automatically matches the SD, HD and 6G-SDI HDMI video input.

HDMI type A in

2 channels of professional balanced analog audio with standard 1/4 inch jack connections.

4 channels of AES/EBU digital audio.

Auto detection of SD, HD or 6G-SDI.

USB

Yes


525i59.94 NTSC, 625i50 PAL

720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30

4K DCI p24

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A or Level B, SMPTE ST-2081, ITU-R BT.656 and ITU-R BT.601.

SDI video connections are switchable between SD, HD, Ultra HD and DCI 4K.

4:2:2

Television standard sample rate of 48 kHz and 24 bit.

4:2:2

YUV

Automatically detects SD, HD or 6G-SDI.

525i29.97 NTSC, 625i25 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60

YUV and RGB

4:2:2 and 4:4:4

HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.



HD down conversion



Mac OS X™ and Windows™ software upgrade via USB.

Via included updater application.



macOS 10.12 Sierra,
macOS 10.13 High Sierra or later,

Windows 8.1 or Windows 10.

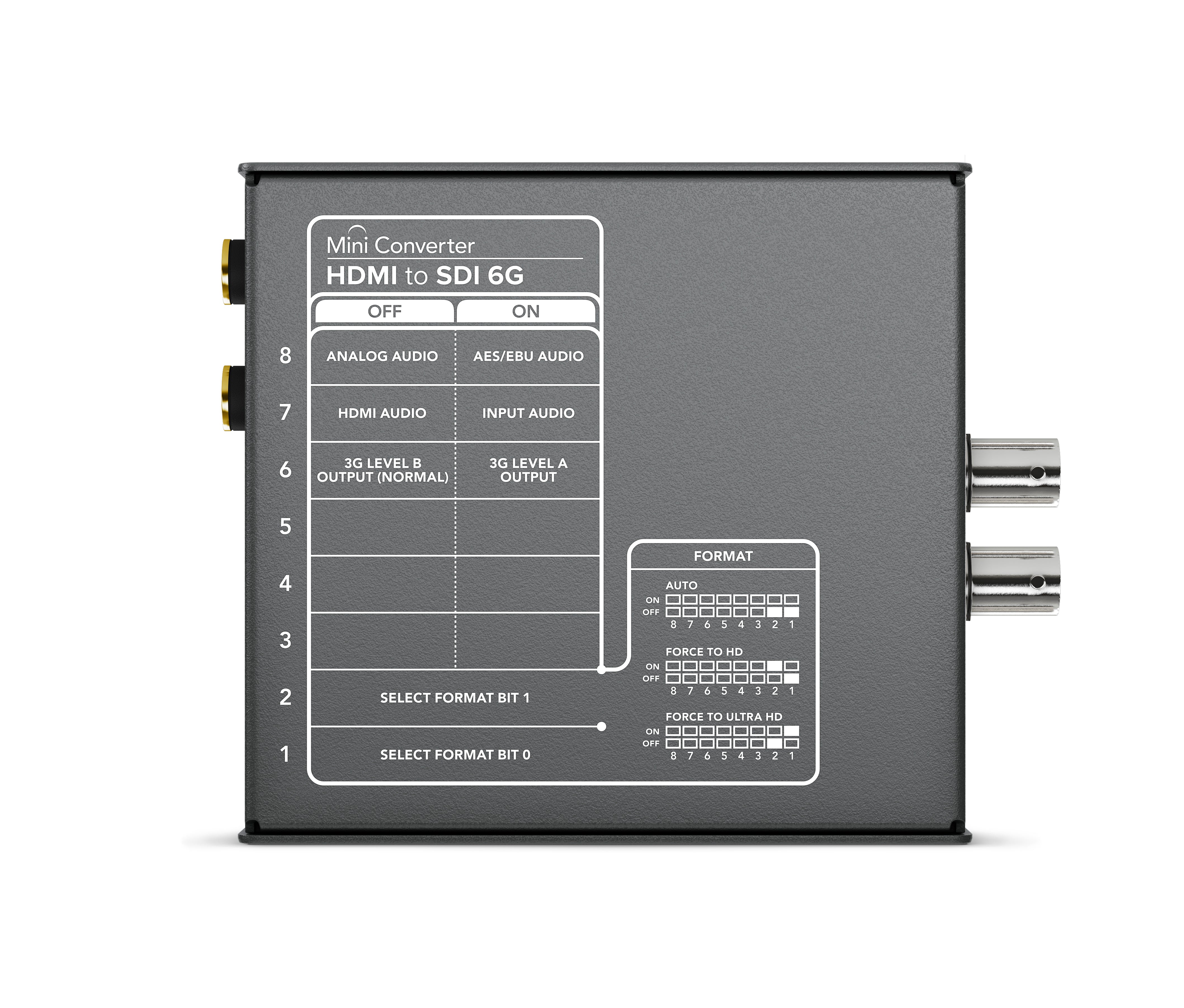

Mini Switches or USB software.



+12V universal power supply included with international socket adapters for all countries. Cable tie point.

4.44 Watts

12 - 31V DC



0° to 40° C (32° to 104° F)

-20° to 45° C (-4° to 113° F)

0% to 90% non-condensing



3 Year Limited Manufacturer's Warranty.
