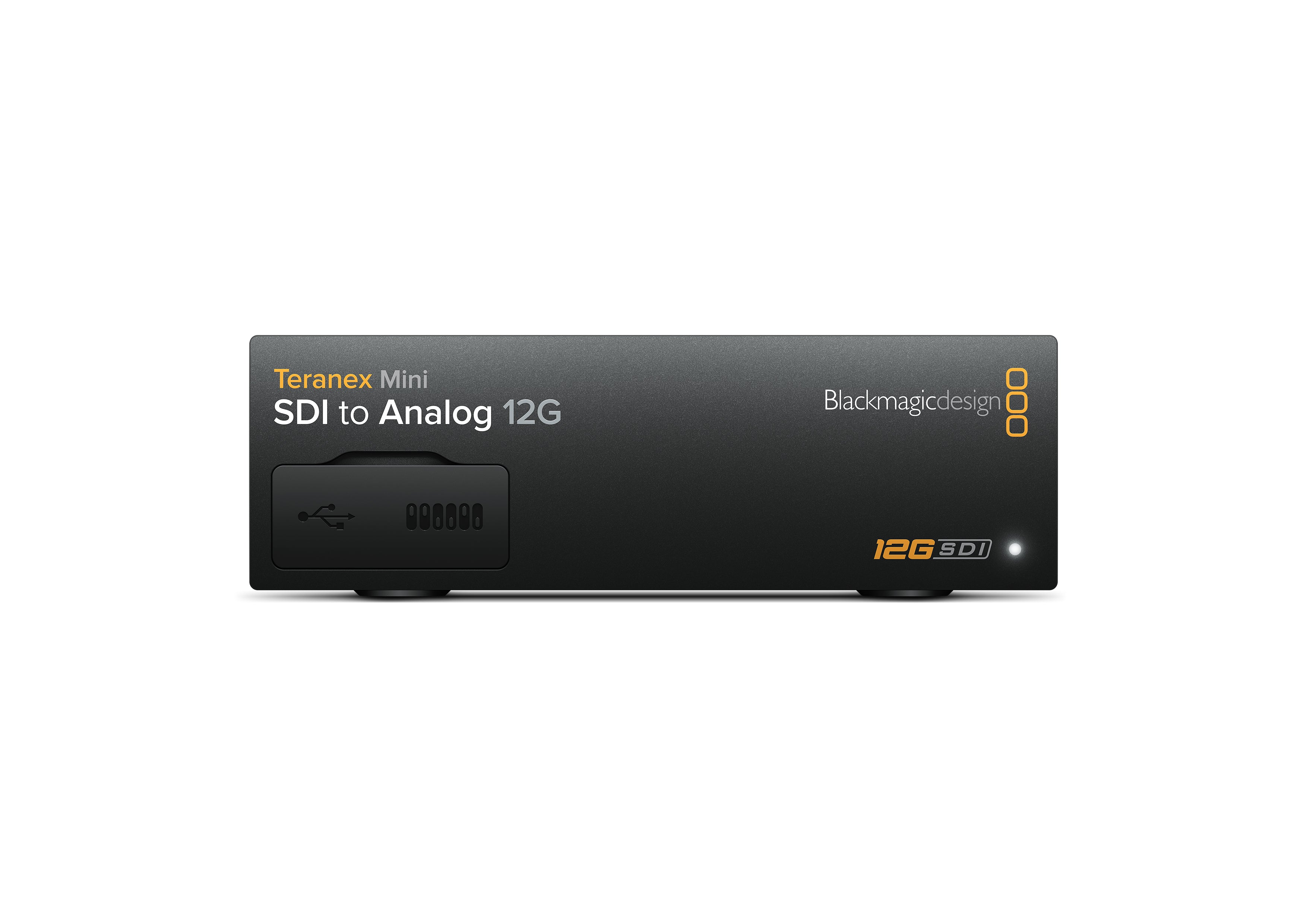

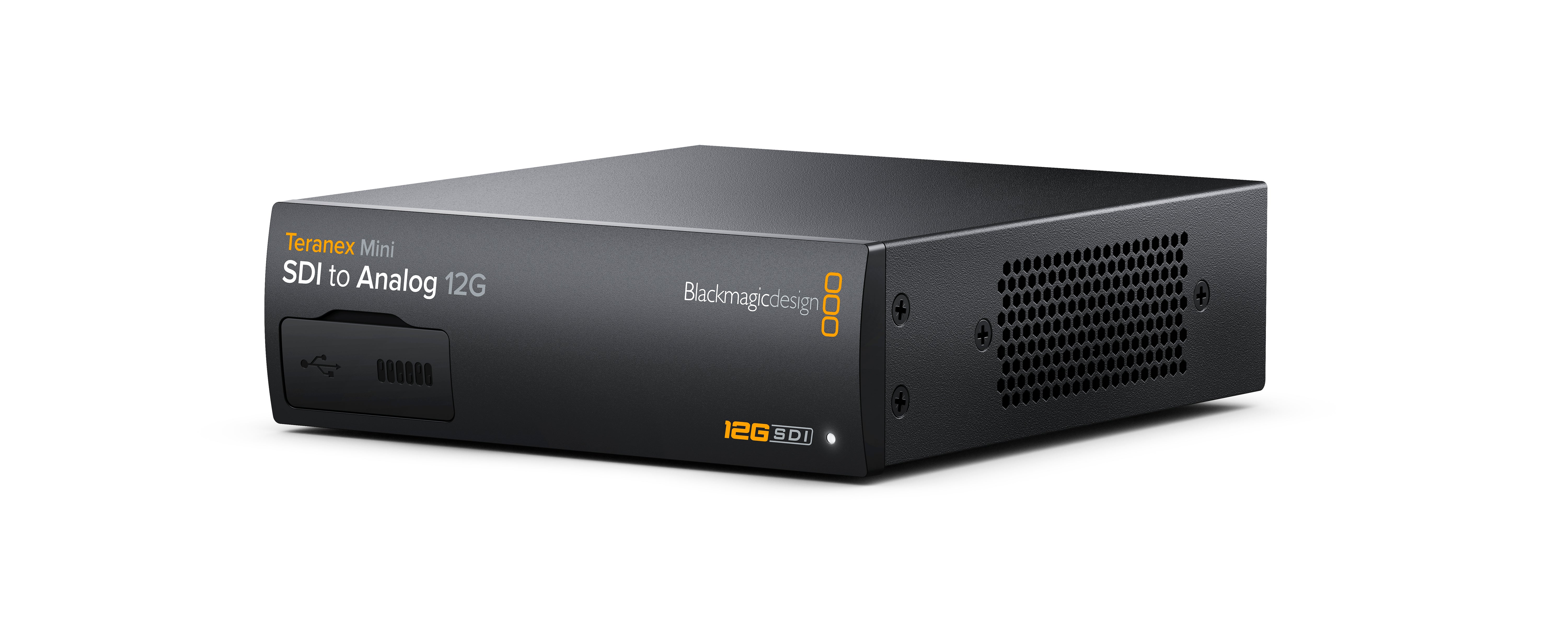

Teranex Mini SDI to Analog 12G
Teranex Mini SDI to Analog 12G

Teranex Mini SDI to Analog 12G


CALL TO ORDER

Convert from 12G-SDI to Analog. Use SD, HD, 6G and 12G-SDI rates and convert to analog video output. Built in down converter lets you connect Ultra HD sources to component video equipment in SD or HD. Allows you to connect analog equipment including Betacam SP, VHS, and video monitors.



1 x 12G-SDI SD/HD/2K/4K auto switching.

1 x 12G-SDI loop output.

2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode output.

4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode output.

Automatic switching between SD/HD/2K and 4K.

USB or Ethernet.

Yes

Teranex Mini - SDI to HDMI 12G

525/29.97 NTSC625/25 PAL

1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60.

2048 x 1080PsF23.98,2048 x 1080PsF242048 x 1080PsF25,2048 x 1080p23.982048 x 1080p24,2048 x 1080p25

3840 x 2160p23.983840 x 2160p24,3840 x 2160p253840 x 2160p29.97,3840 x 2160p303840 x 2160p50,3840 x 2160p59.943840 x 2160p60,4096 x 2160p23.984096 x 2160p24,4096 x 2160p254096 x 2160p29.97,4096 x 2160p304096 x 2160p50,4096 x 2160p59.944096 x 2160p60

SMPTE 292MSMPTE 259M,SMPTE 296MSMPTE 372M,SMPTE 424M-BSMPTE 425M,ITU-R BT.656 and ITU-R BT.601

SDI video connections are auto switching between standard definition SDI, high definition level B 3G-SDI, 6G-SDI, and 12G-SDI.

4:2:2 and 4:4:4

Television standard sample rate of 48 kHz and 24-bit.

4:2:2 and 4:4:4

YUV

Automatically detects SD, HD or 12G-SDI.

525/29.97 NTSC, 625/25 PAL, 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60

REC 601, REC 709

YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.

HD down conversion

Mac OS X™ and Windows™ software upgrade via USB and Ethernet.

Via included updater application.

Mini Switches, USB and Ethernet via free software utility

Front mounted Smart Panel with LCD, rotary knob and six settings buttons

1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.

Can be powered via 48V DC using PoE (power over ethernet).

15 Watts

90 - 240V AC

Teranex Mini - SDI to Analog 12G

0°to 40°C (32° to 104°F)

-20°to 60°C (-4° to 140°F)

0% to 90% non-condensing

Teranex Mini - SDI to Analog 12G

Software SD Card

3 year Limited Manufacturer’s Warranty.
