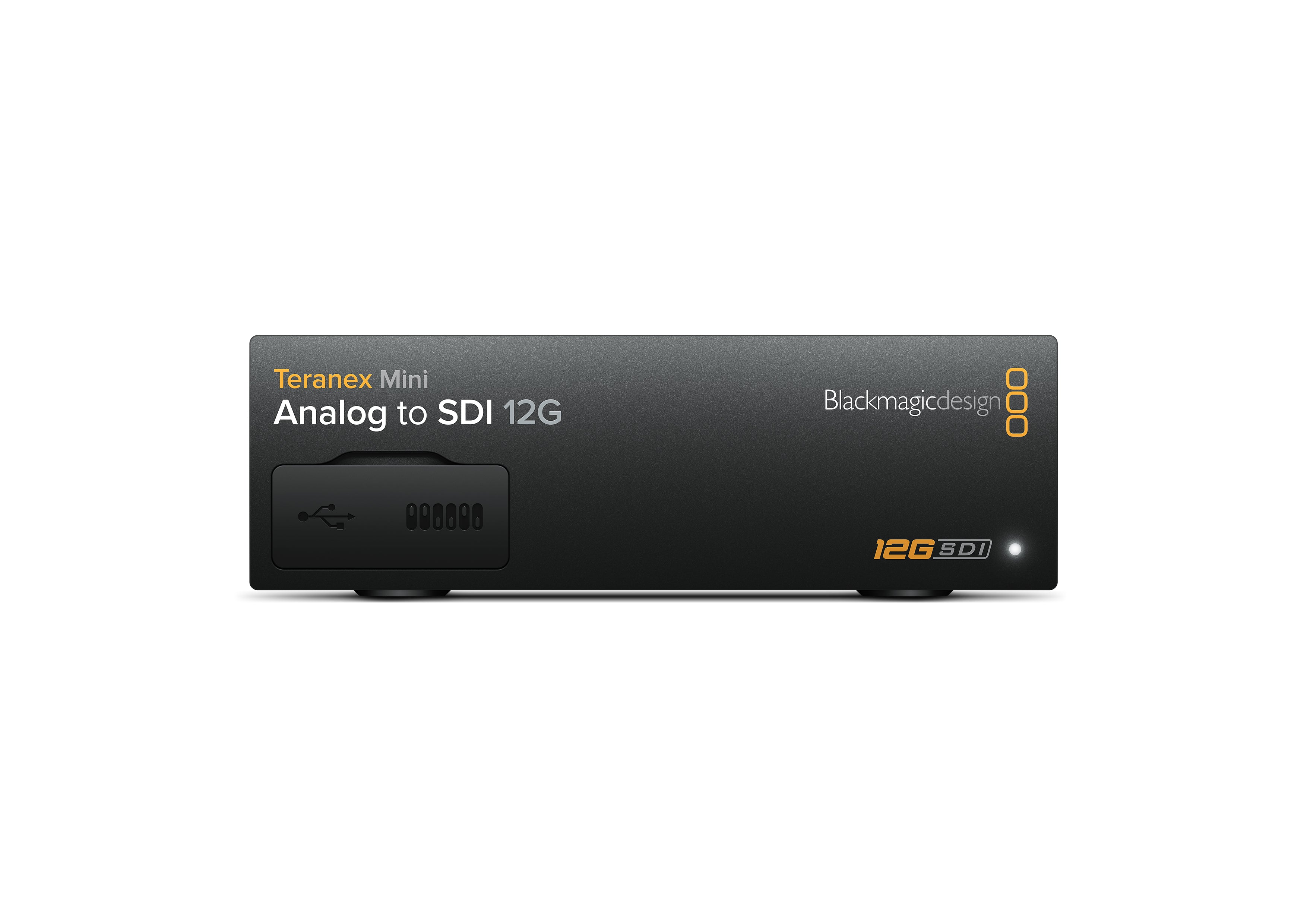

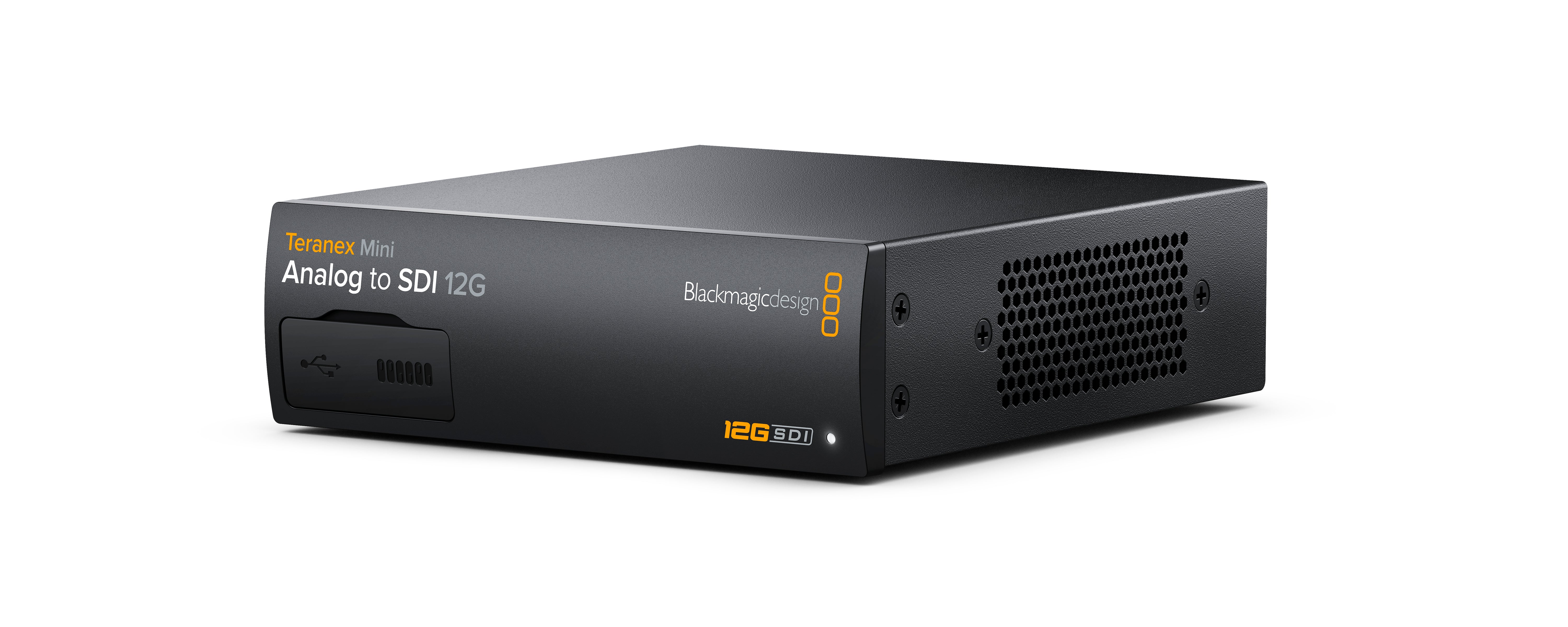

Teranex Mini Analog to SDI 12G
Teranex Mini Analog to SDI 12G

Teranex Mini Analog to SDI 12G

Regular price $495.00
Unit price  per
Shipping calculated at checkout.

Convert from analog video to 12G-SDI. Convert incoming analog video signals to SD, HD, 6G and 12G-SDI. Ideal for converting your analog devices such as Betacam SP, VHS, set top boxes, gaming consoles and HDV cameras to incredible quality SD/HD/Ultra HD SDI video up to 2160p60.

Component SD/HD, NTSC, PAL and S‑Video.

User selectable to SD, HD and 12G-SDI.

2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode input.

4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode input.

SDI output switchable between HD for composite and S-Video and Ultra HD for component HD.

USB or Ethernet.

Yes

Teranex Mini - SDI to HDMI 12G

SMPTE 292M, SMPTE 259M,SMPTE 296M, SMPTE 424M-B,ITU-R BT.656 and ITU-R BT.601

SDI video connections are switchable between standard definition and high definition.

4:2:2 and 4:4:4.

Television standard sample rate of 48 kHz and 24-bit.

YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.

REC 601, REC 709

625/25 PAL, 525/23.98 NTSC, 525/29.97 NTSC, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p50, 3840 x 2160p59.94.

625/25 PAL, 525/23.98 NTSC,525/29.97 NTSC, 1920 x 1080i50,1920 x 1080i59.94, 1920 x 1080i60,1280 x 720p50, 1280 x 720p59.94,1280 x 720p60.

REC 601, REC 709

4:2:2

Mac OS X™ and Windows™ software upgrade via USB and Ethernet

Via included updater application.

Mini Switches, USB and Ethernet via free software utility

Front mounted Smart Panel with LCD, rotary knob and six settings buttons

1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.

Can be powered via 48V DC using PoE (power over ethernet).

15 Watts

90 - 240V AC

0°to 40°C (32° to 104°F)

-20°to 60°C (-4° to 140°F)

0% to 90% non-condensing

Teranex Mini - Analog to SDI 12G

Software SD Card

3 year Limited Manufacturer’s Warranty.
