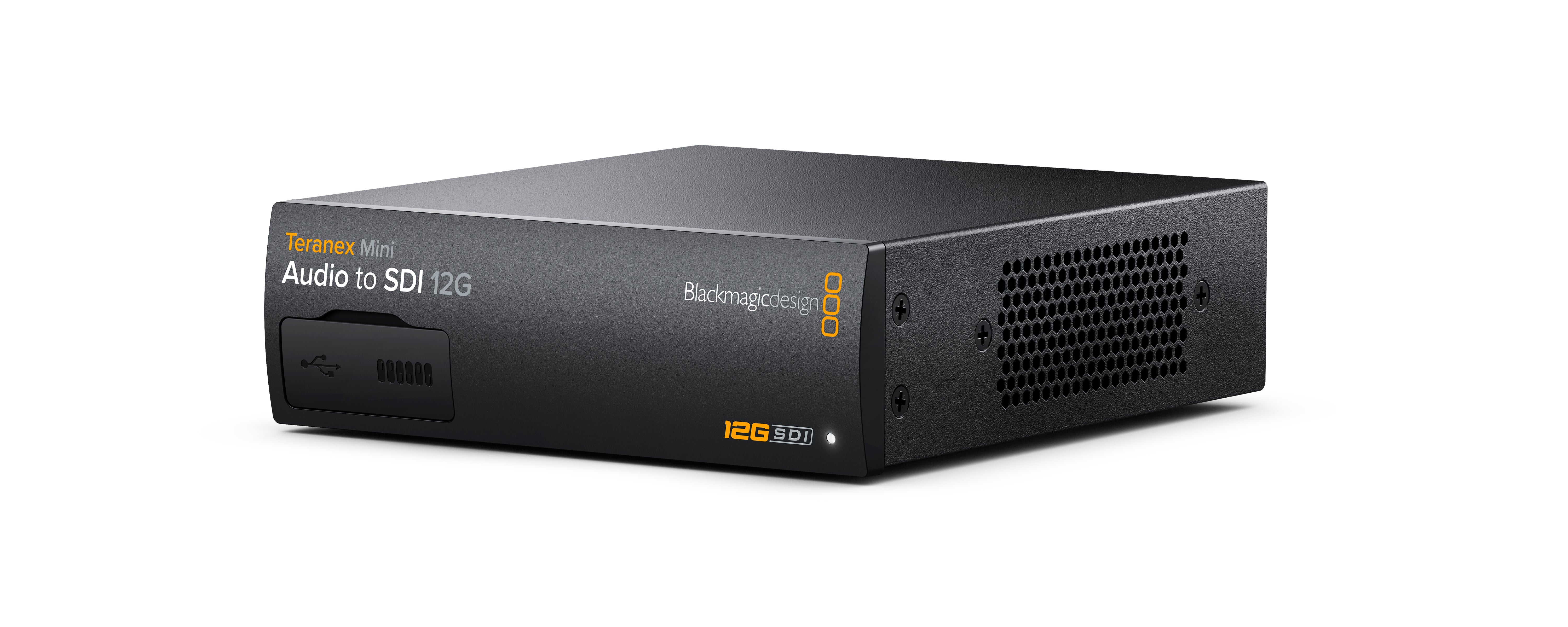

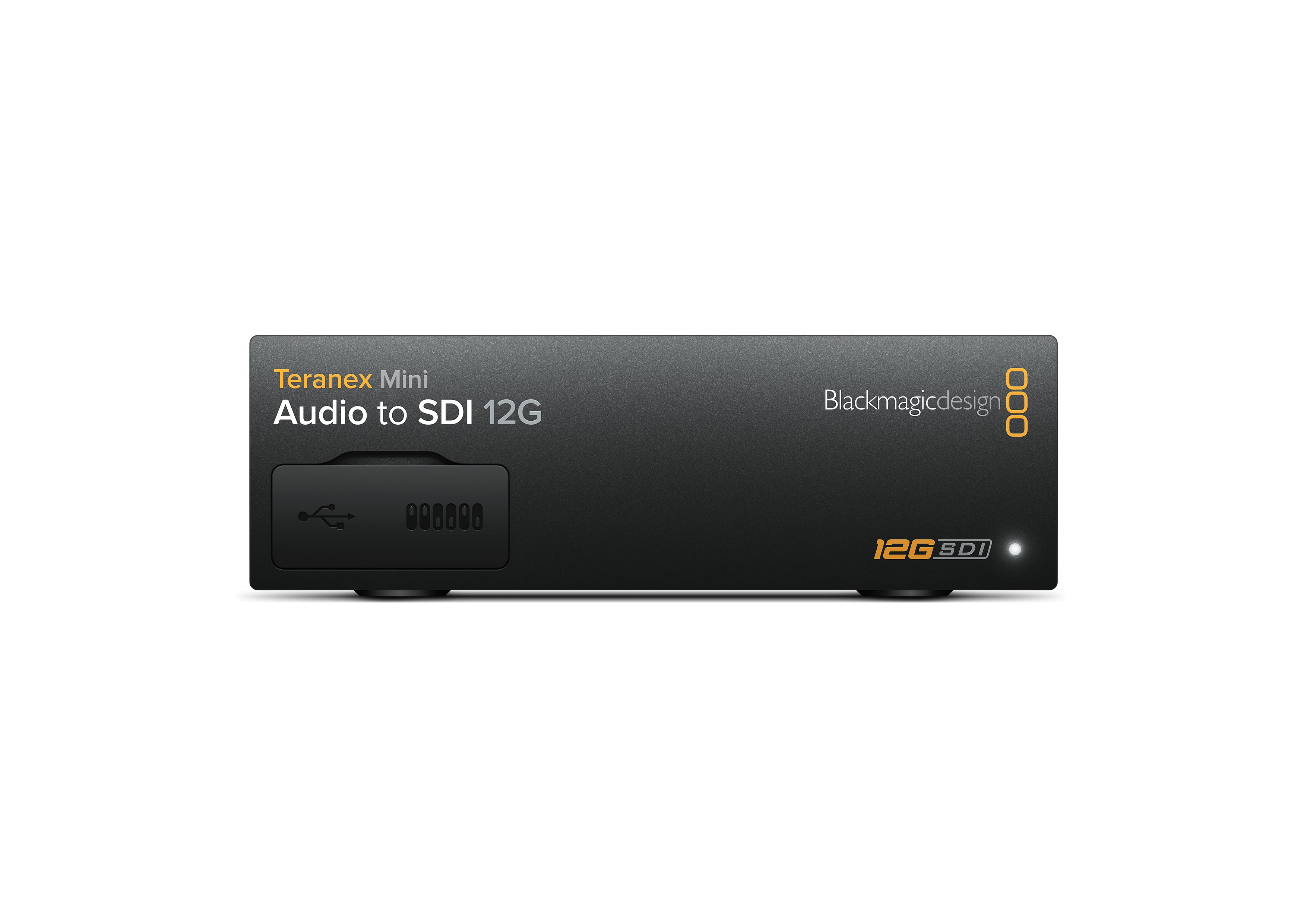

Teranex Mini Audio to SDI 12G

Embed up to 2 channels of audio from balanced analog, optical or HiFi RCA, or embed up to or 4 channels of AES/EBU digital audio into any SD, HD, Ultra HD or DCI 4K SDI video connection. Take audio from devices such as audio mixers, iPods and analog decks and embed it into SDI video connections for use with SDI routers and decks.

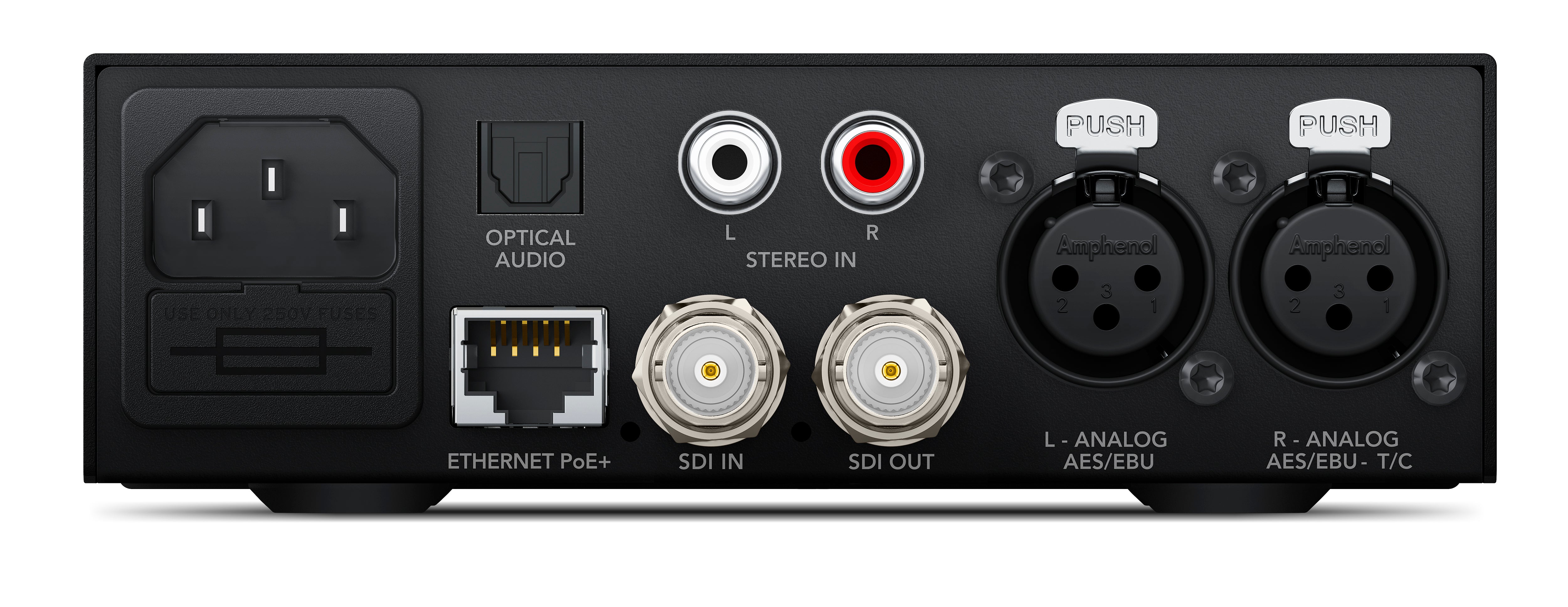

1 x 12G-SDI SD/HD/2K/4K auto switching.

1 x 12G-SDI output.

2 channels professional balanced analog audio via XLR connectors, or 2 channel unbalanced analog line level via RCA connectors. Right XLR can be configured for timecode input.

4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode input.

S/PDIF Signal with TOSLINK Connector.

Automatic switching between SD/HD/2K and 4K.

USB or Ethernet.

Yes

525/29.97 NTSC, 525/23.98 NTSC,625/25 PAL.

1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60.

2048 x 1080p23.98, 2048 x 1080p24,2048 x 1080p25, 2048 x 1080PsF23.98,2048 x 1080PsF24, 2048 x 1080PsF25.

3840 x 2160p23.98, 3840 x 2160p24,3840 x 2160p25, 3840 x 2160p29.97,3840 x 2160p30, 3840 x 2160p50,3840 x 2160p59.94, 3840 x 2160p60,4096 x 2160p23.98, 4096 x 2160p24,4096 x 2160p25, 4096 x 2160p29.97,4096 x 2160p30, 4096 x 2160p50,4096 x 2160p59.94, 4096 x 2160p60

SMPTE 292M, SMPTE 259M,SMPTE 296M, SMPTE 372M,SMPTE 424M-B, SMPTE 425M,ITU-R BT.656, ITU-R BT.601,SMPTE ST-2036

SDI video connections are auto switching between standard definition SDI, high definition level B 3G-SDI, 6G-SDI and 12G-SDI.

4:2:2, 4:4:4

Television standard sample rate of 48kHz and 24-bit.

REC 601, REC 709

Automatically selects between SD, HD, 3G, 6G and 12G-SDI.

YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.

REC 601, REC 709

Mac OS X™ and Windows™ software upgrade via USB and Ethernet.

Via included updater application.

Mini Switches, USB and Ethernet via free software utility

Front mounted Smart Panel with LCD, rotary knob and six settings buttons

1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.

Can be powered via 48V DC using PoE (power over ethernet).

15 Watts

90 - 240V AC

0°to 40°C (32° to 104°F)

-20°to 60°C (-4° to 140°F)

0% to 90% non-condensing

Teranex Mini - Audio to SDI 12G

Software SD Card

3 year Limited Manufacturer’s Warranty.
