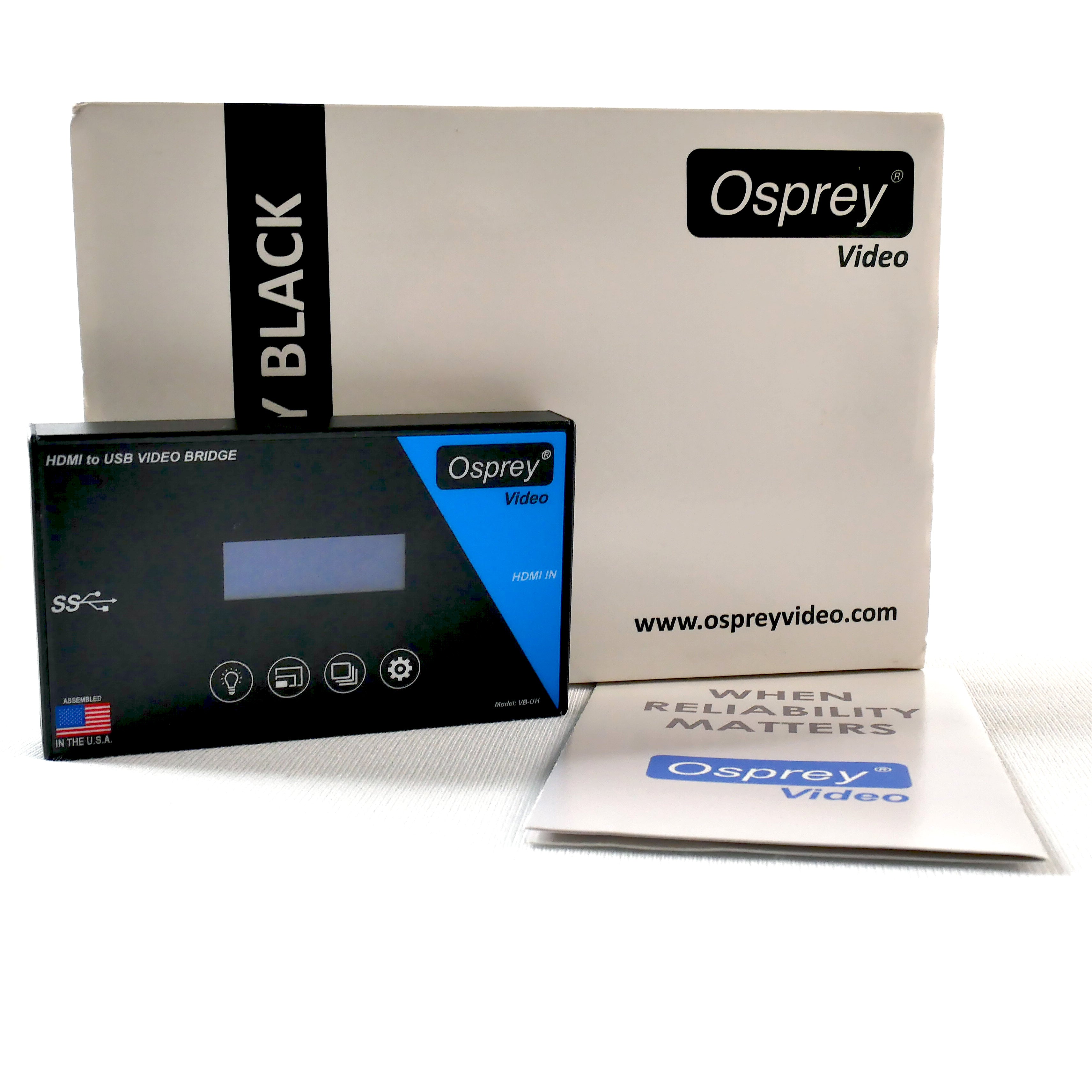

Excellent Condition includes original box and a USB cable
The USB Video Bridge capture device series includes 3G-SDI and HDMI models providing wide-ranging adaptability for complex workflows. Connecting directly to your computer’s USB 3.0 port, the Video Bridge is true plug-and-play, requiring no drivers in Windows, Linux, or Mac OS X.
Two control scenarios support varying user requirements. Software control mode passes all available rates and resolutions to the capture software. Manual mode allows the pre-selection of a frame rate and resolution, allowing the user to control the load delivered to the USB bus.
USB Specifications
Video Input Resolutions
1920x1080P60, 59.94, 60, 30, 29.97, 25, 24, 23.98
1920x1080i60, 59.94, 50
1280x720P60, 59.94, 50, 30, 25
576i50 PAL, 480i60 NTSC
Video Output Resolutions (USB to PC)
Frame Rates 24, 25, 30, 50, 60
1920x1080, 1680x1050, 1440x900, 1360x768, 1280x1024, 1280x800, 1280x768, 1280x720, 1024x768, 1024x576, 960x540, 856x480, 800x600, 768x576, 720x576, 720x480, 640x480, 640x360
In the Box
1x USB Capture Device
1x 3ft USB Cable
1x Quick Start Manual
Electrical/Mechanical Specifications
Power 5VDC | 4.5W max
Operating Temperature 0 to 40C
Dimensions: 103x61x17mm (4x2.4x0.65")
