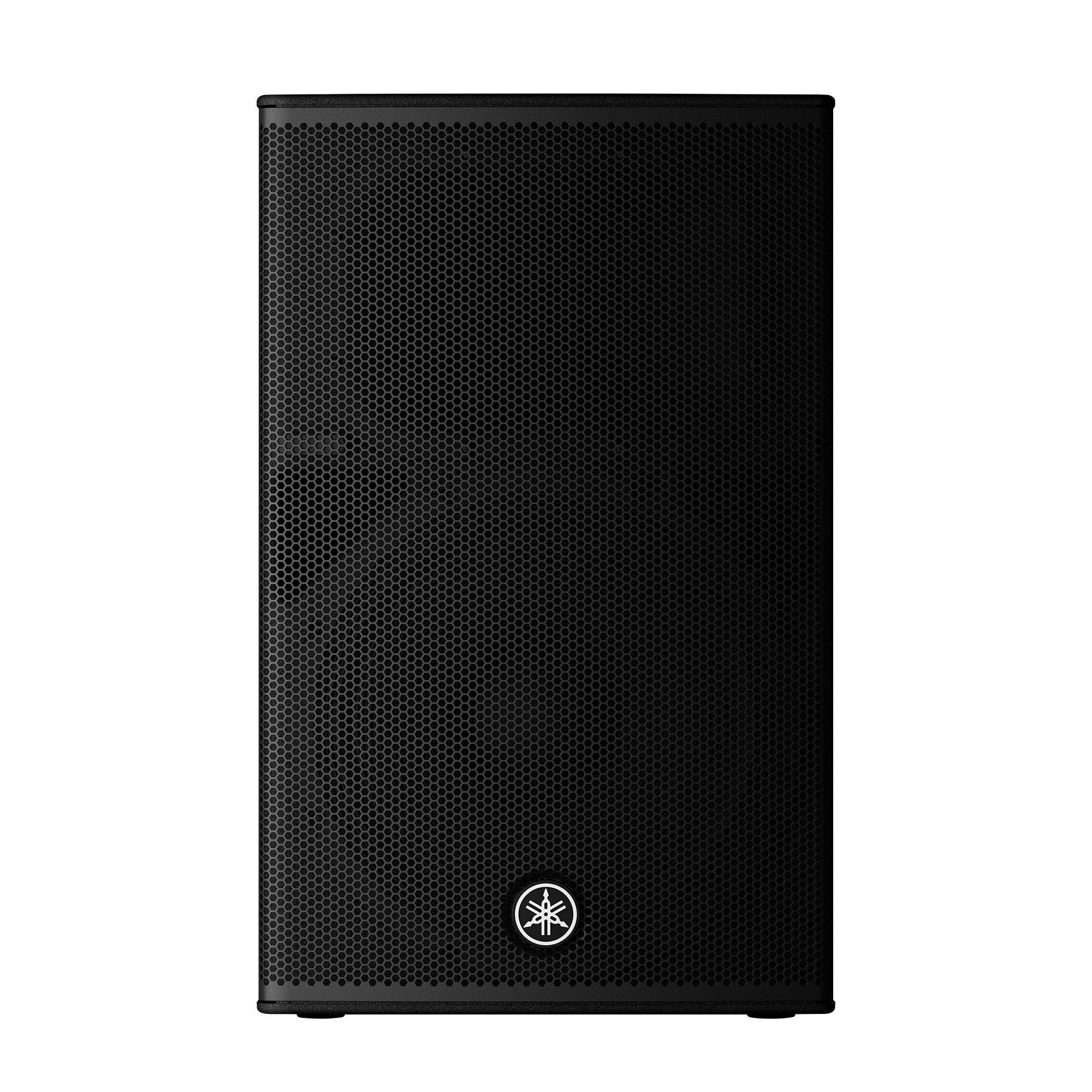

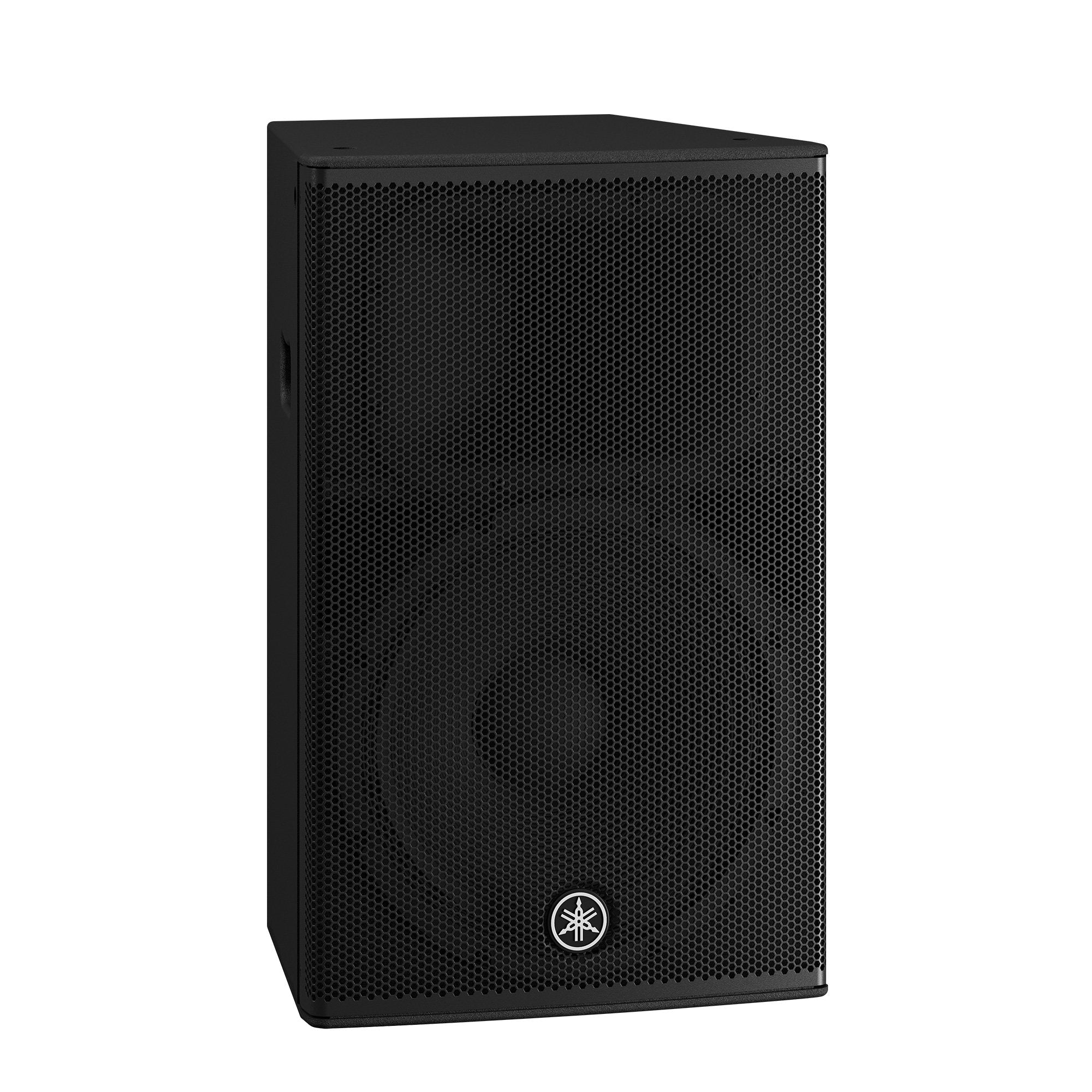

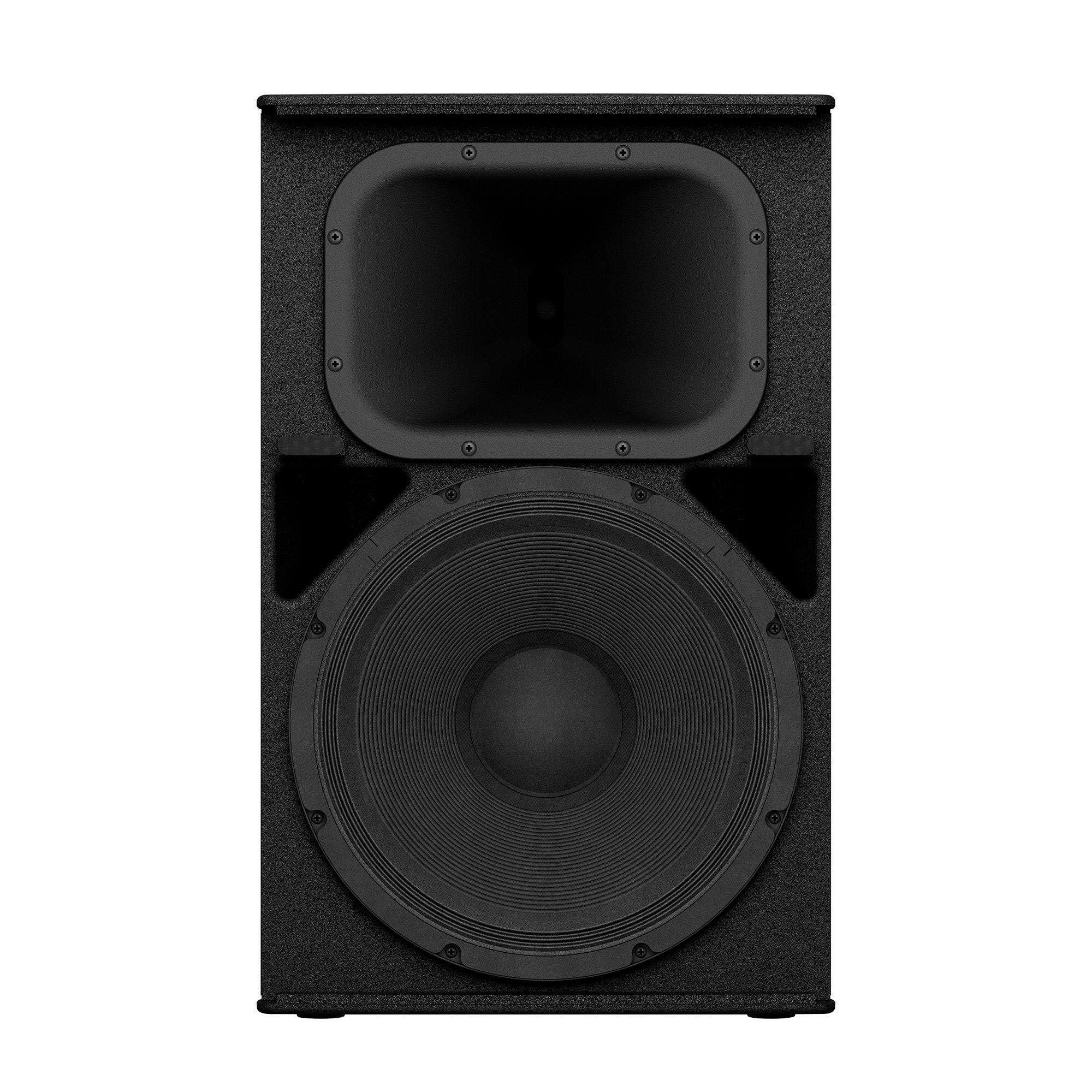

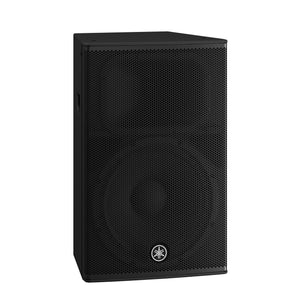

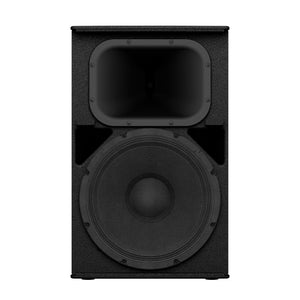

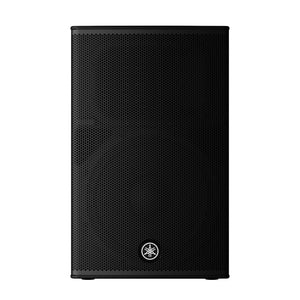

Yamaha DHR15 15" 2-Way Active Loudspeaker System B STOCK
Yamaha DHR15 15" 2-Way Active Loudspeaker System B STOCK
Yamaha DHR15 15" 2-Way Active Loudspeaker System B STOCK
Yamaha DHR15 15" 2-Way Active Loudspeaker System B STOCK

Yamaha DHR15 15" 2-Way Active Loudspeaker System B STOCK

Regular price $1,041.00 Sale price $794.00
Unit price  per
Shipping calculated at checkout.

B Stock

This product has an estimated 3-5 day shipment processing time.

The DHR Series offers an ideal solution for anyone ready to step up their sound reinforcement game to a new level of professional quality, accuracy, and performance. Premium plywood cabinets finished in a tough polyurea coating provide durability not found on other loudspeakers in this class.

Each model in the series has been optimized to meet the demands of a variety of sound reinforcement applications, with a 10” model for fixed installation and utilities, a 12” model designed for use as a floor monitor, and a 15” version for FOH applications—all featuring custom transducers driven by DSP-equipped class-D power amplifiers to deliver stunning sound quality and clarity. Combined with practical features adapted for their specific applications, the series gives you the flexibility to choose the ideal speaker for a wide variety of sonic environments. Isn’t it time you audition DHR quality and performance to improve your sound?


Yamaha DHR15 Features:

  • Featuring a plywood cabinet that delivers a clear sound with minimal vibration
  • Plywood enclosure with a polyurea coating for a robust, scratch resistant surface
  • Compact size despite the 15-inch LF driver that provides excellent low frequency response
  • Dual-angle pole sockets offer both 0° or a -7° down tilt
  • Rigging points for use with eye bolts
  • Propitiatory FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion

Yamaha DHR15 Specifications:

  • Speaker type: 2-way, Bi-amped Powered Speaker, Bass-reflex
  • Frequency range (-10dB): 44 Hz - 20 kHz
  • Coverage area: H90゚ x V60゚
  • Crossover: 1.8 kHz: FIR-X tuning™ (linear phase FIR filter)
  • Maximum Output Level (Measured peak, IEC noise@1m): 131 dB SPL
  • Components
    • LF: Diameter: Diameter: 15" cone, Voice Coil: 2.5", Magnet: Ferrite
    • HF: Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite
  • Amplifier class: Class-D
  • Power rating
    • Dynamic: 1,000 W (LF: 800 W, HF: 200 W) *1
    • Continuous: 465 W (LF: 400 W, HF: 65 W)
  • Cooling: Fan cooling, 4 speeds
  • Power consumption: 74 W (1/8power), 18 W (Idle)
  • Power requirements: 100 V, 100-120 V, 220-240 V, 110/127/220 V (Brazil), 50/60 Hz
  • A/D D/A Converters: 24 bit 48 kHz Sampling
  • Processors: HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF

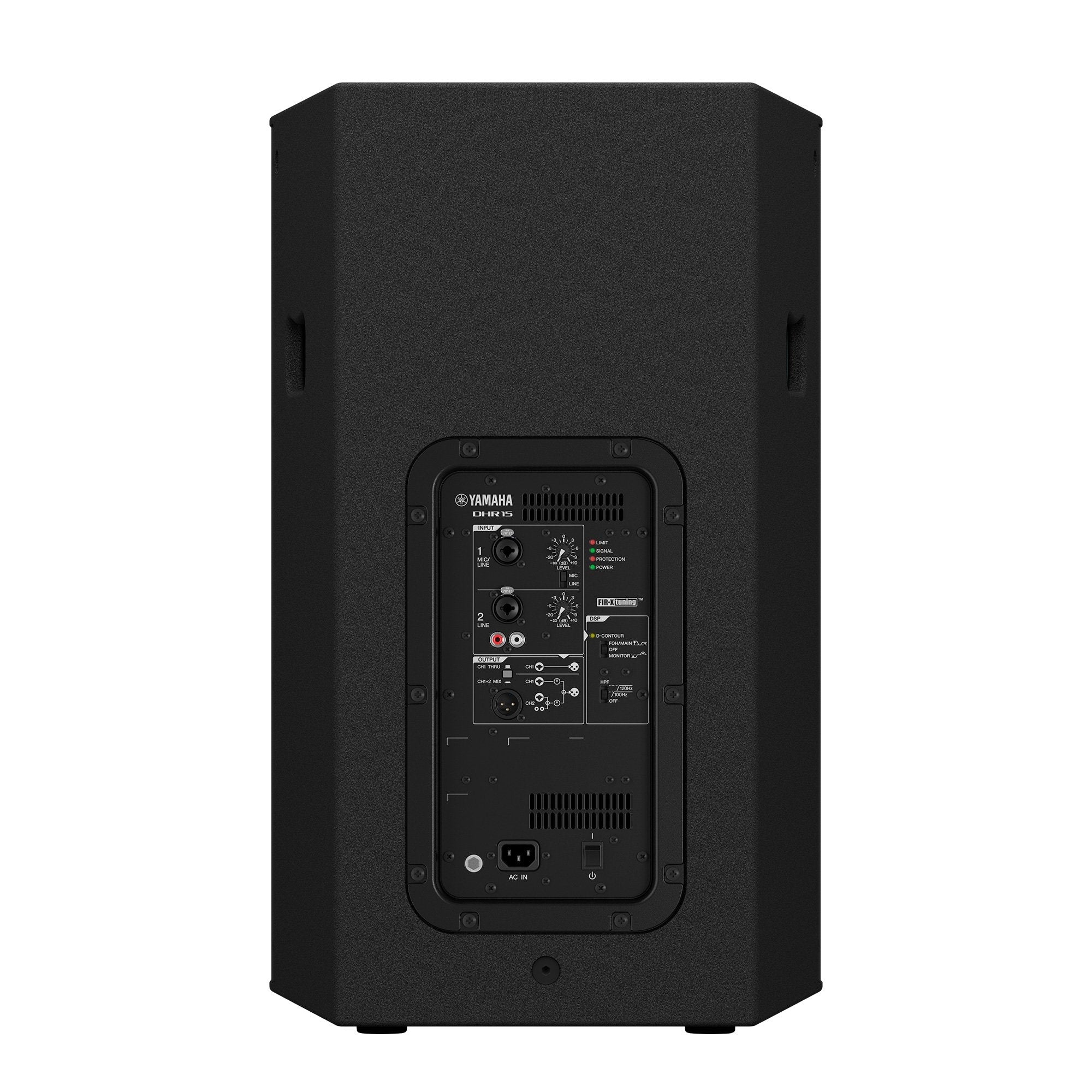

  • I/O connectors: INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
  • Cabinet material: Plywood
  • Finish: Durable Polyurea Painting, Black
  • Handle: Side x2
  • Pole socket: Φ35 mm x1 (Bottom)
  • Rigging: Top x 2, Rear x 1 (Fit for M10 x 30 - 50 mm Eyebolts)
  • Floor Monitor Angle: N/A
  • Dimensions
    • W: 432 mm (17.0")
    • H: 692 mm (27.2") (with rubber feet)
    • D: 405 mm (15.9")
  • Net weight: 24.0 kg (52.9 lbs)
