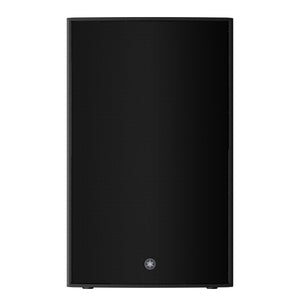

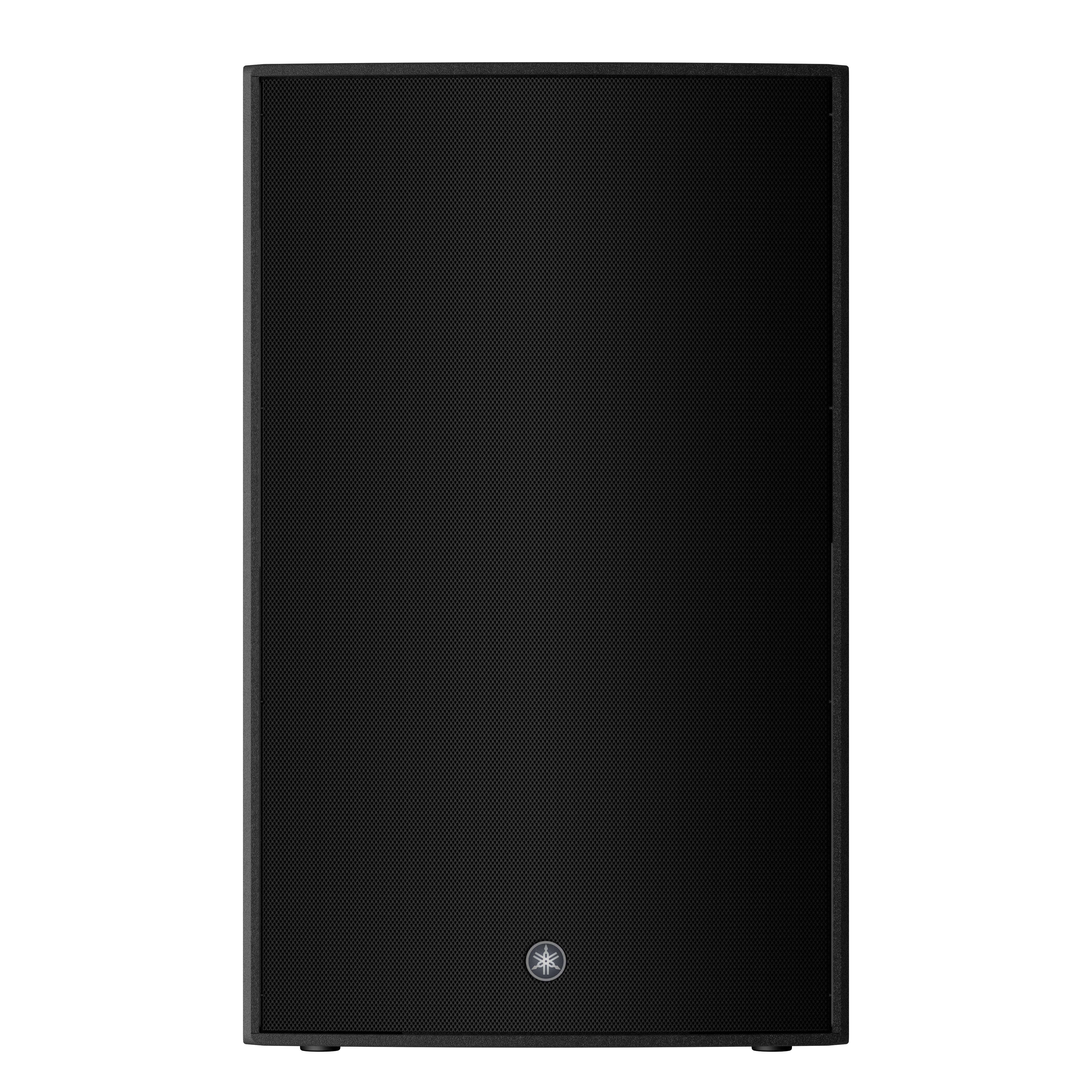

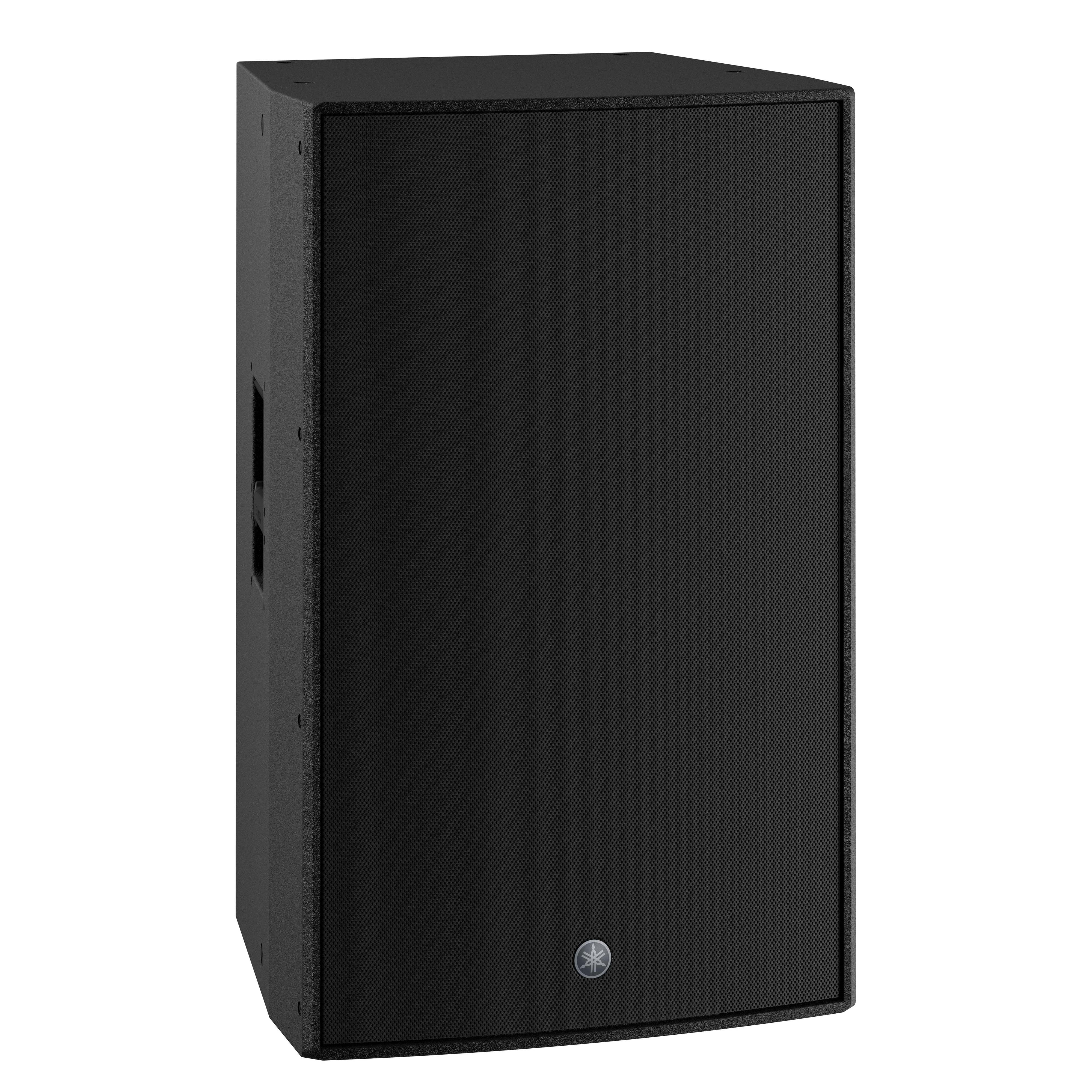

The most powerful model in their DZR Series lineup, Yamaha's DZR315-D is a Dante™-equipped 3-way bi-amped powered loudspeaker that produces a maximum 143 dB SPL with unmatched clarity. It offers best-in-class SPL performance along with sophisticated DSP processing, unrivaled low-frequency sound reproduction—delivering on all fronts, and realizing a truly professional sound brought forth with a level of power that's belied by its compact, lightweight design. This powerhouse works great as a main front of house PA, also including multiple integrated M10 rigging points for suspended applications.
Features
- 3-way powered loudspeaker with a 2" HF, an 8" MF and a 15" LF
- Maximum 143 dB SPL and 31 Hz - 20 kHz frequency range is ideal for FOH main PA
- High power 2000W Class-D amplifier module
- 96 kHz DSP and FIR filter for true high-resolution sound with super low latency
- Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
- Equipped with Dante I/O (2-in/2-out) and features SRC (sample rate conversion) allowing 48 kHz device compatibility
- Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
- D-Contour and highly reliable protection circuits
- Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
- Optional speaker cover (SPCVR-DZR315) (sold separately)
Specifications
- System Type: 3-way, Bi-ampled Powered Speaker, Bass-reflex
- Frequency Range (-10 dB): 31 Hz - 20 kHz
- Coverage Angle: H75 degrees x V50 degrees (rotatable)

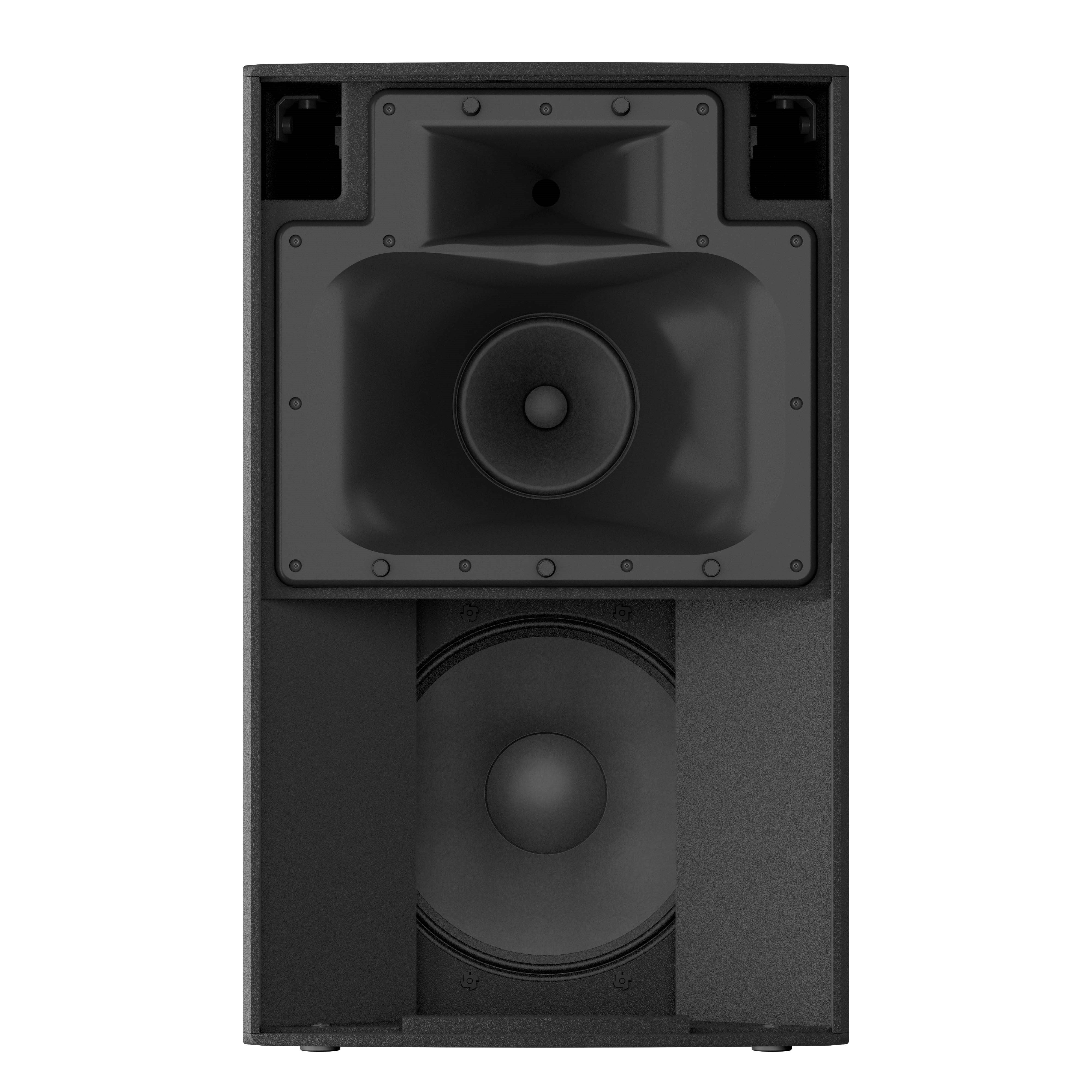

- Components:
- LF: 15" Cone, 3" Voice Coil, Neodymium magnet
- MF: 8" Cone, 1.5" Voice Coil, Ferrite magnet
- HF: 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
- Crossover: 700 Hz (FIR-X) 2.5 kHz (Passive)
- Sampling Frequency Rate (Internal): 96 kHz and FIR filter
- AD/DA Converter: 96 kHz AD/DA
- Maximum output level (1m; on axis): 143 dB SPL (measured peak SPL with pink noise @1m)
- Power Rating:
- Dynamic: 2000W (LF:1000W, MF/HF: 1000W; total peak power of individual outputs (AC 120V, 25° C). This value was measured at minimum load impedance, with protection released)
- Continuous: 1300W (LF: 920W, MF/HF: 380W)

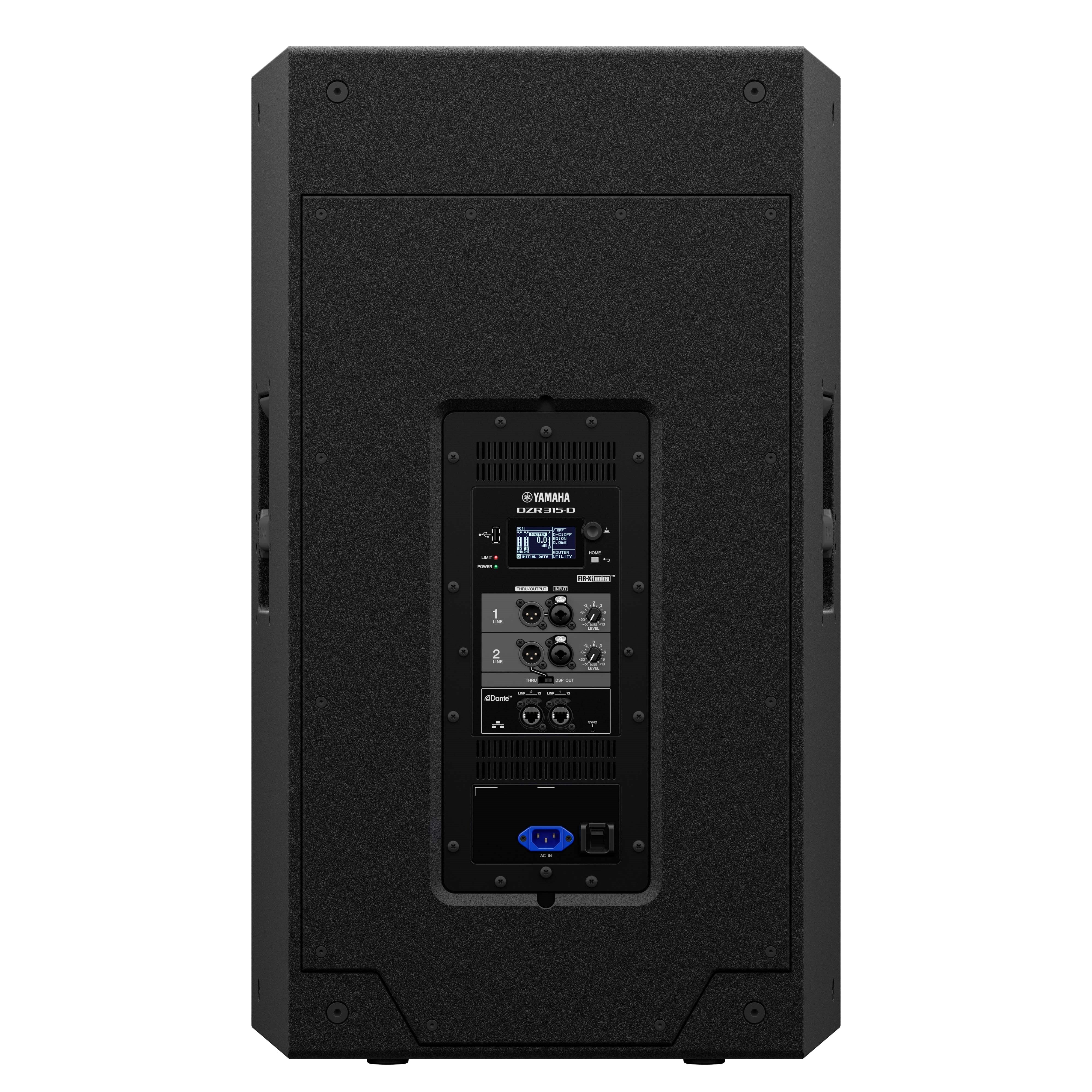

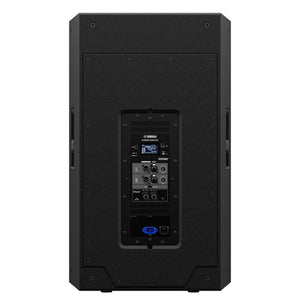

- Connectors:
- Analog IN: combo x2, Line level (Maximum +24 dBu), Input impedance 20 kOhms
- Analog OUT: XLR3-32 x2, CH1/2: THRU or DSP OUT
- USB: USB2.0 Host 5V 500mA, for USB memory DATA storage/load
- AC IN: IEC AC inlet x1 (V-Lock)
- Amplifier Type: Class-D
- Cooling: Fan cooling, Variable speeds
- Power Consumption: 45W (Idle) 150W (1/8)
- Handles: Aluminium die-cast, Side x2
- Rigging Options: M10 x16
- Dimensions (W x H x D, with rubber feet): 21.6" x 35.3" x 20.5" (550 x 897 x 520mm)
- Weight: 91.7 lbs. (41.6 kg)
- Enclosure Material/Finish/Color: Plywood/Durable Polyurea Coating/Black
